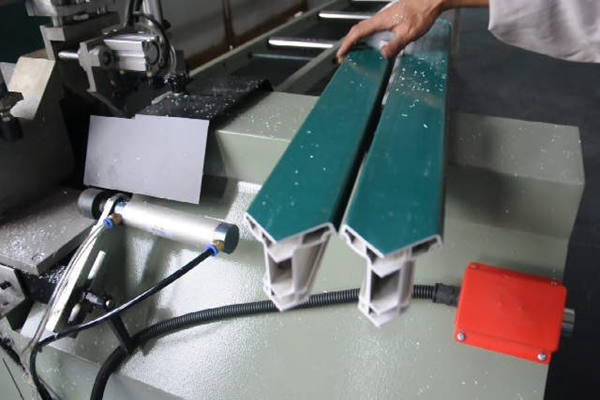

1. The UPVC window mullion cutting machine uses two pieces of saw blades to cut the end face of window mullion into a V shape, and then connects the mullion and the frame by welding.

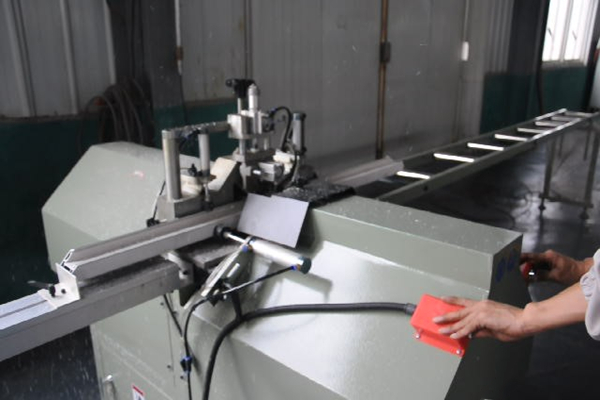

2. Horizontal arrangement, stable operation and high dimensional accuracy of sawing.

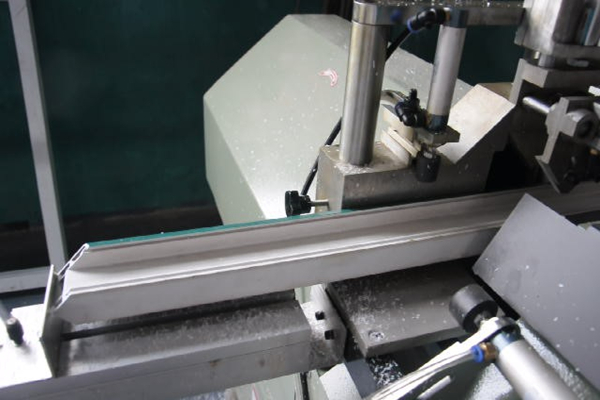

3. Special clamping device, no material jumping during sawing.

4. The cutting waste is only generated at the saw edge, and the utilization rate of the profile is high.

Technical Parameters

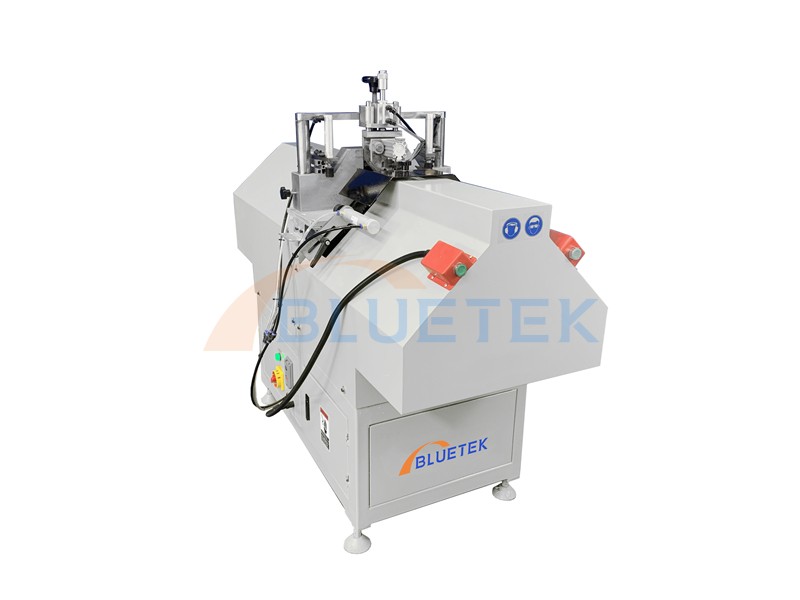

Product Name	UPVC Profile Mullion Cutting Machine
Model	SJT02-350
Air Pressure	0.6 ~0.8 Mpa
Power Supply	380V 50Hz or Customized
Input Power	3.0 KW
Motor Rotating Speed	2800 r/min
Cutting Height	110mm
Cutting Width	120mm
Cutting Length	300 - 2100 mm
Dimension	7500*1700*1400 mm Including profile racks for left and right
Weight	300 KGS
