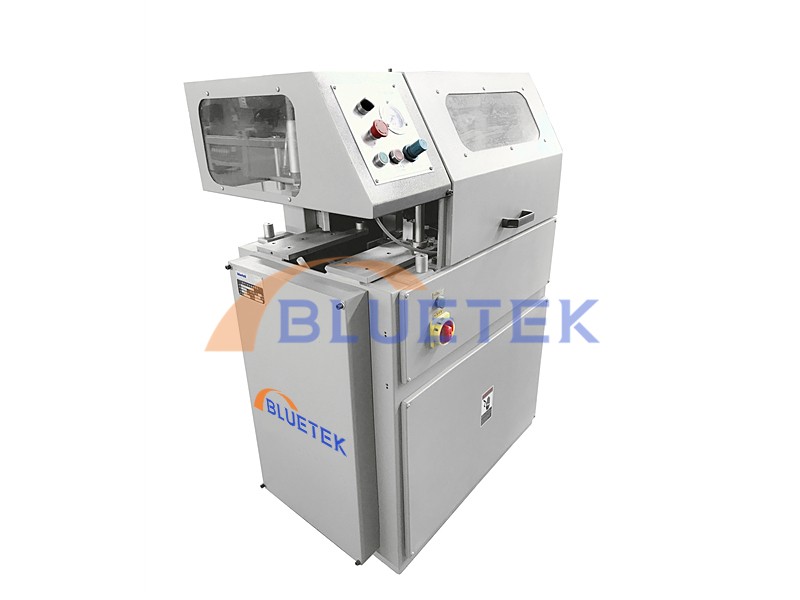

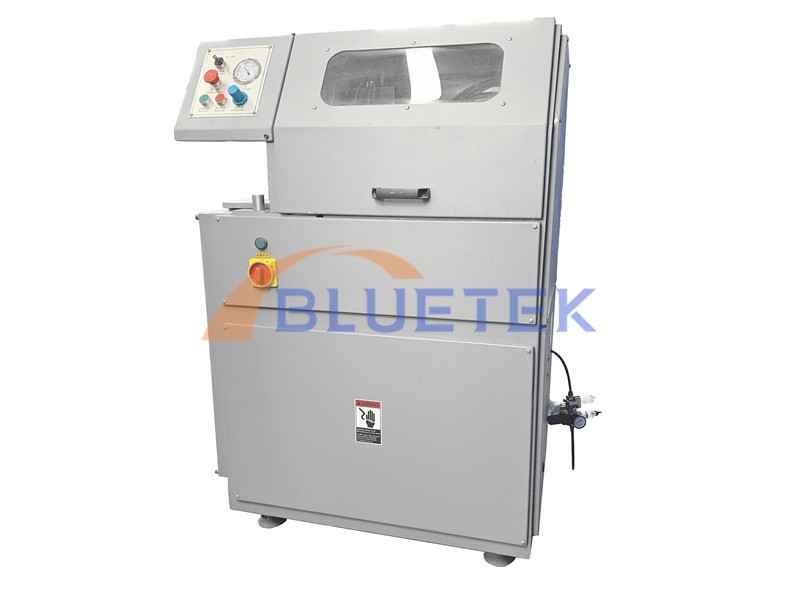

1. The semi-automatic upvc cleaning machine of window door  is controlled by PLC, which can clean the upper surface, lower surface and outer corner of plastic steel doors and windows. It is faster than the manual angle cleaning machine, and the cleaning effect is beautiful.
2. The upper and lower cutting knife can clean any profile, but the saw blade for the outer corner needs to be customized according to the shape of the profile, so it is called semi-automatic, which is the difference from the CNC automatic corner cleaning machine.
3. Convenient adjustment and high processing precision，and the upvc corner cleaning machine price is affordable.

Technical Parameters

Product Model	SQJ01-120
Product Name	Semi-automatic UPVC Cleaning Machine of Window Door
Power Voltage	Customize
Input Power	1.5 KW
Air Consumption	30L /min
Air Pressure	0.6 ~0.8 Mpa
Processing Height	120 mm
Processing Width	120 mm
Groove Width	3 mm
Groove Depth	0.3 mm
Weight	260 KG
Overall Dimension	800*700*1400 mm

Detail Pictures
