SSJ06A-CNS-450x3700  Digital Display Double Heads PVC Cutting Machine is a automatic cutting saw for PVC window and door, aluminium window and door, also can be used for other industrial aluminium profiles. Through the control panel, the automatic switching between 45 degree angle and 90 degree angle is realized, which is convenient and quick.

Cutting angles 45° and 90° of double heads pvc cutting machine

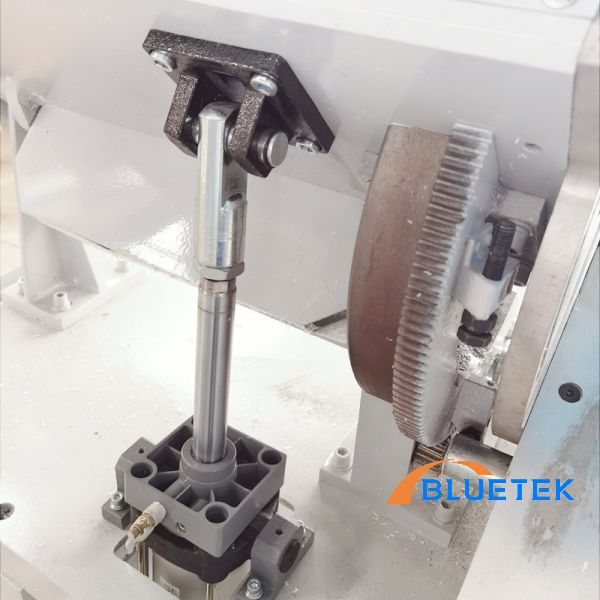

The switching of the cutting angle is realized through the traction of the cylinder, and only the rotary button of the control panel is needed.

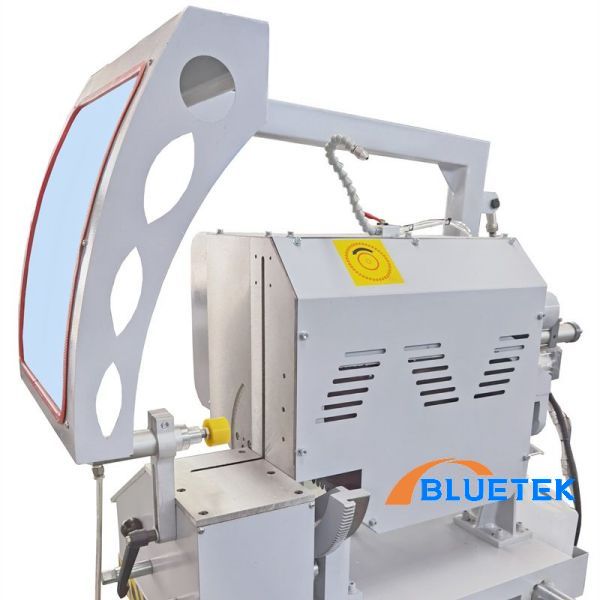

The safety cover of the double heads PVC cutting machine opens and closes automatically. After pressing the "Feeding" button, the saw blade will cut forward and the safety cover will fall down, release the "Feeding" button, the saw blade will retreat, and the safety cover will rise.

Two heads of double heads pvc cutting machine are equipped with a lubricating spray system, especially when cutting aluminum, spraying coolant to the saw blade can significantly improve the cutting quality of the profile section and prolong the service life of the saw blade.

Once finishing the power connection of pvc cutting machine, must confirm the rotation direction of the saw blade, be consistent with the direction of the label. If the directions are opposite, just swap the positions of the two live wires.

Digital display ruler, used to display the position of the right handpiece (ie cutting length). During the operation, it is more convenient and intuitive to confirm the cutting length, and the positioning accuracy is higher.

How to correct the error between the actual cutting length and the displayed length?

If there is an error in the display length of the double heads pvc cutting machine, we need to correct it.
Move the right saw head, cuts and measures the actual length with a meter ruler; press and hole the button "◀ " , and release it when the number on the screen starts to flash; Inputs the actual length just measured, and then press the "Enter" button. Calibration is complete.

Technical Parameters

Product Model	SSJ06A-CNS-450x3700
Product Name	Digital Display Double Heads PVC Cutting Machine
Quality Warranty	2 Years
Input Power	2.2KW * 2
Power Voltage	220V, 380V, 415V , Customized
Air Consumption	50L /min
Diameter of Saw Blade	450mm
Cutting Angles	45° , 90°
Cutting Width	125 mm
Cutting Length	400~ 3700 mm
Cutting Height	150 ~ 200 mm
Gross Weight	1000 KG
Machine Size	4500*1200*1700mm
Country of Origin	China
Main Selling Point	Digital Display , Automatic Sawing Angles
Core Components	Motors, Saw Blades

Packing and Shipping For Double Heads PVC Cutting Machine

PVC cutting machine, double heads PVC cutting machine is packed in plastic film and wood case, shipping to the customer's country by sea and rail, some machines can be shipped by air. We have rich experience in international trade and can provide customers with shipping agency and customs clearance services, saving time and energy for customers.

Besides pvc cutting machine, what machines are needed to produce PVC doors and windows?

1. Double heads pvc cutting machine ( or single head pvc cutting machine )

2. PVC water slot milling machine

3. Copy router ( also called Lock hole machine )

4. End milling machine ( or V cutting saw )

5. PVC window welding machine ( 2mm welding or 0.2mm seamless welding )

6. PVC window corner cleaning machine

7. Glazing bead cutting saw

8. PVC arch bending machine

Working Video Of SSJ06A-450x3700 Digital Display Double Heads PVC Cutting Machine
