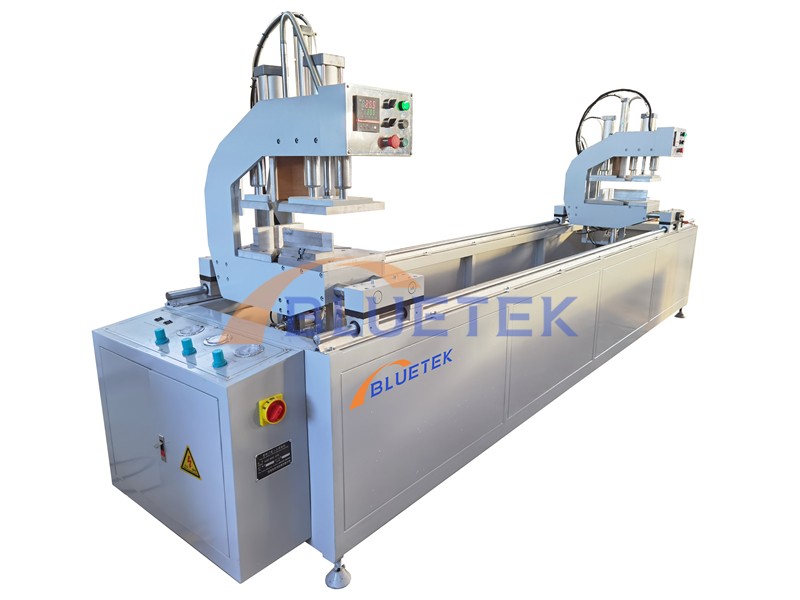

1. This kind of two heads seamless welding machine is equipped with knife on press clamp of ordinary welding machine, and the pneumatic system is improved, which can realize seamless welding of color co-extruded PVC profiles. The main feature of this upvc window manufacturing machine price is affordable.

2. It has a secondary extrusion function to ensure higher welding strength.

3.The pressure of the front and rear pressure plates can be adjusted separately to realize the independent adjustment of the pressure of the front and rear pressure plates, which can effectively improve the flatness of the welding angle.

4.Welding heads can realize single action, double action and linkage, and can also be combined freely.

5.The right welding head is equipped with an arbitrary angle welding die, which can weld any angle from 30° to 180°.

6.The combined 4-layer backing board can be adjusted in height and is suitable for PVC profiles in different countries.

7. PLC control, high degree of automation, stable and reliable. The PLC brand can be selected from Japan’s Omron or China.

8. If you want a more professional seamless welding machine of upvc window making, please click WFH-2 double heads upvc window seamless welding machine

Technical Parameters

Model	HJ06-3500.2/2.A
Product Name	Two Heads Seamless Welding UPVC Window Manufacturing Machine
Power Supply	220V 50Hz
Input Power	2.5 KW
Air Pressure	0.5 ~0.8 MPa
Welding Profile Height	20 ~ 120 mm
Welding Profile Width	120 mm
Welding Profile Length	400 ~ 3500 mm
Overall Dimension	4500*1100*1700 mm
Weight	900 KGS
PLC Brand	Japan Omron / China Brand
Backing Plates	4 Layers of Aluminium Plates

Detail Pictures

Cutting Knife for Seamless Welding
