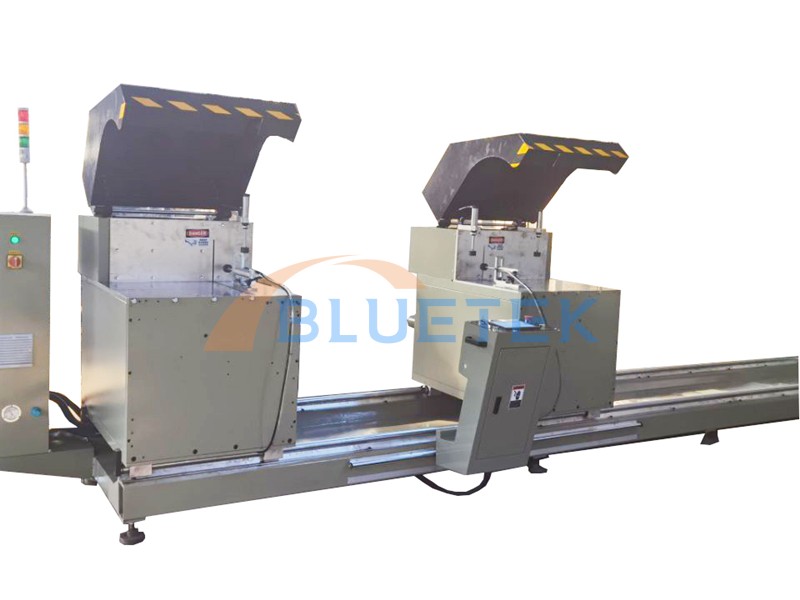

1. Heavy duty double saw cutting machine specially designed for 90-degree cutting of super-large industrial aluminum materials, with a saw blade diameter of 650 mm (600 mm optional), and a cutting range of 200*200 mm.

2. It can be used in the automobile manufacturing industry, rail transit industry, machinery and equipment industry, and sawing of other industrial aluminum profiles.

3. In order to ensure that the saw blade does not tremble when cutting, the feeding system of the saw blade adopts imported spindle motors, square guide rail of Taiwan HIWIN , and gas-liquid damping cylinder. The saw blade is directly connected to the spindle motor, and is fed from the back to the front on the guide rail, and the saw blade is very stable.

4. The position of the pressing cylinder can be adjusted, which is convenient for cutting aluminum profiles of different sizes and ensures more stable pressing.

5. The movable saw head of the double head saw adopts a pneumatic brake and a fixed-length fine-tuning device.

6. Adopt SIEMENS control system, including PLC, driver, servo motor, touch screen, etc. The operation interface is friendly and the stability is very high.

Technical Parameters

Model	LJZD2C-CNC-650×5000
Product Name	Heavy Duty Double Head Saw for 90°
Power Voltage	Customized
Input Power	3.0 KW * 2
Diameter of Saw Blade	650 mm
Cutting Width	250mm
Cutting Height	200mm
Cutting Length	400 - 5000mm
Cutting Angle	90°
Repeat Location Tolerance	+/- 0.2mm
Dimension	6500* 1250*1800 mm
Weight	3000 KGS

Standard Configuration For Double Head Cutting Saw

PLC	SIEMENS
Touch Screen	SIEMENS
Servo Motor	SIEMENS
Servo Drive	SIEMENS
Low Voltage Electrical Components	Schneider
Pneumatic Components	AirTAC
Saw Blade	KANEFUSA
