1. The single head aluminium window pressing machine can not only be used for punching aluminum alloy doors and windows, but also other aluminum extrusion.
2. A set of molds can be installed on the machine, and the molds can be customized according requirment, which is convenient for disassembly and assembly and has a long service life.

3. The hydraulic system of aluminium profile pressing machine adopts well-known brands in Taiwan, with strong stability.

Technical Parameters

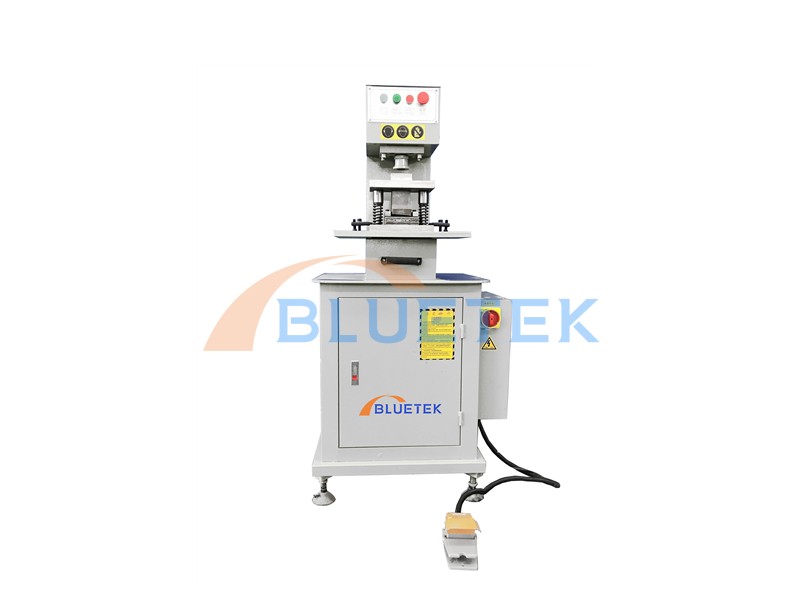

Product Name	Aluminium Window Hydraulic Pressing Machine
Product Model	LYJ-50
Number of Mold Stations	1 Station
Input Power	1.5 KW
Power Supply	Customize
Oil tank capacity	35L
Hydraulic Pressure	48 KN
Rated Oil Pressure	15MPa
Mold Size	250×200×215mm
Punching Stroke	50 mm
Overall Dimension	700*800*1450 mm

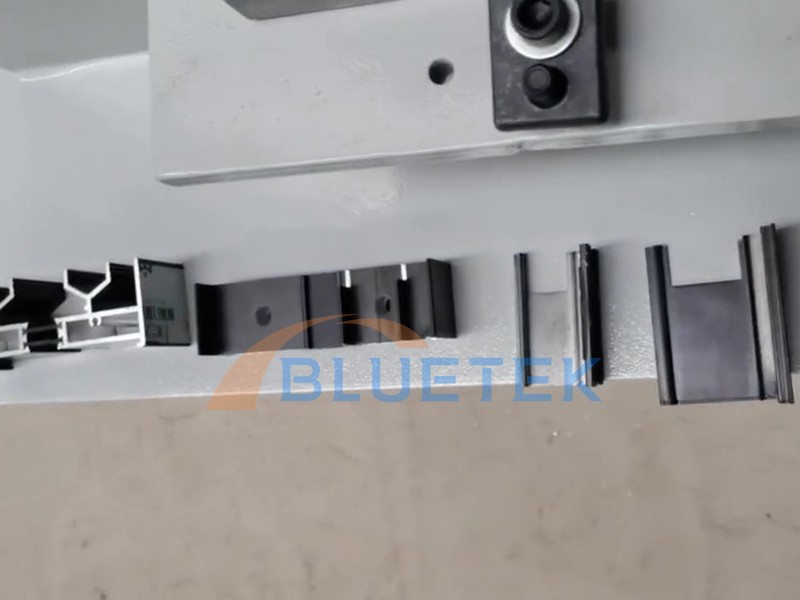

Detail Pictures
