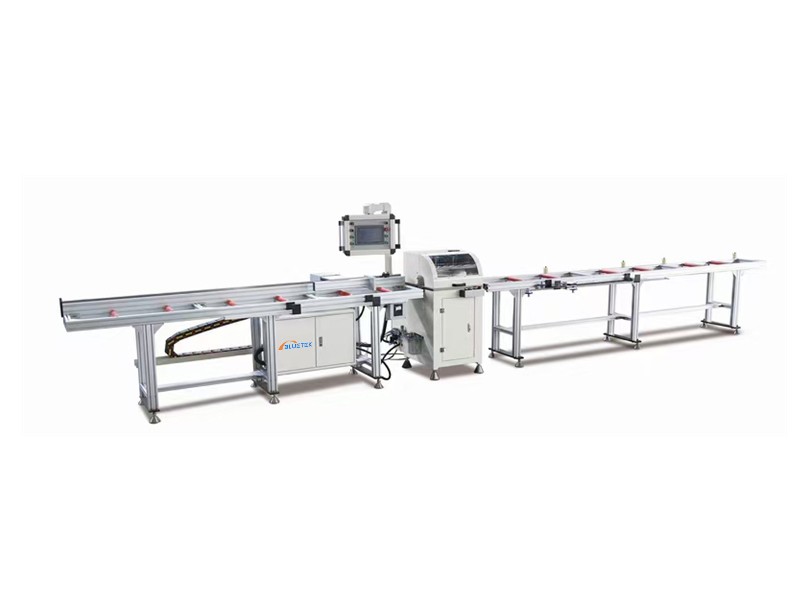

1. The Bluetooth CNC Aluminium Window Glazing Bead Cutting Saw is specially used for cutting aluminum window glazing bead pressing bar / aluminium pressing bar at a 90-degree angle. It consists of hand-held measuring ruler, CNC positioning rack, and single-head cutting saw.

2. The aluminum rod of the Bluetooth measuring ruler adopts a lightweight design, which is comfortable to hold and has high measurement accuracy.

3. The CNC positioning rack is controlled by servo motor and PLC, with high repeat positioning accuracy; double linear square rail, stable operation and small error. Manual adjustment device for cutting ultra-short stock.

4. Processing process of bluetooth transmission CNC aluminium window glazing bead cutting saw : Hold the measuring rod and moving the positioning block,  fixing it at the position of the aluminium bead on the inside of the window frame. Press the confirm button, the data will be transmitted to the control screen through Bluetooth, and the control screen can display dozens or hundreds of length information. Press the button on the control panel, the positioning end-stopper of the positioning rack automatically moves to the correct length position, and then the saw blade will feed and cut.

5. This CNC positioning frame can be used in combination with a single-head saw to cut other aluminum alloy profiles, manually enter the length on the screen, and the positioning end-stopper is automatically positioned.

Technical Parameters

Product Name	Bluetooth Aluminum Glazing Bead Cutting Machine
Model	LYJ-400
Saw Blade	400mm
Cutting Angle	90°
Transmission Structure	Precision Square Guide, Rack, Servo Motor, PLC
Max. Cutting Length	3500mm
Weight	150 KG
