• Insulated glass sealant extruder is used for the second sealing of insulating glass, pure pneumatic control, split structure, easy to use and easy to operate.

• The integrated structure of base material pump, curing agent pump and proportional pump prevents glue leakage. The motor is imported from South Korea, with stable power and large glue output.

• The proportional pump has a special one-way valve, and the glue is smooth, suitable for all kinds of sealants, and completely solves the uneven mixing of glue.

• The hand-held glue gun adopts stainless steel mixing mandrel, which is precise and durable; the multi-channel filter device prevents impurities.

• This insulated glass manufacturing equipment is equipped with a safety valve device to ensure work safety.

• Two-component silicone sealant is a two-component, high stability, neutral curing silicone elastic sealant. It has high modulus, high strength and other properties to meet the needs of insulating glass assembly. In addition to the advantages of ordinary silicone sealant, such as weather resistance and high and low temperature resistance, this product also has the characteristics of low air permeability, which can be used for secondary sealing of insulating glass.

Technical Parameters

Product Model	ST05
Product Name	Insulated Glass Manufacturing Equipment, Insulated Glass Sealant Extruder
Working Air Pressure	0.5~0.8 Mpa
Max. Pressure	20 Mpa
Max. Air Consumption	0.5m3 / min
Base Material Barrel	200 L
Hardener Barrel	20 L
Mixing Ratio	6:1 ~ 14:1
Overall Dimension	1200*1200*2500mm
Weight	500 KGS

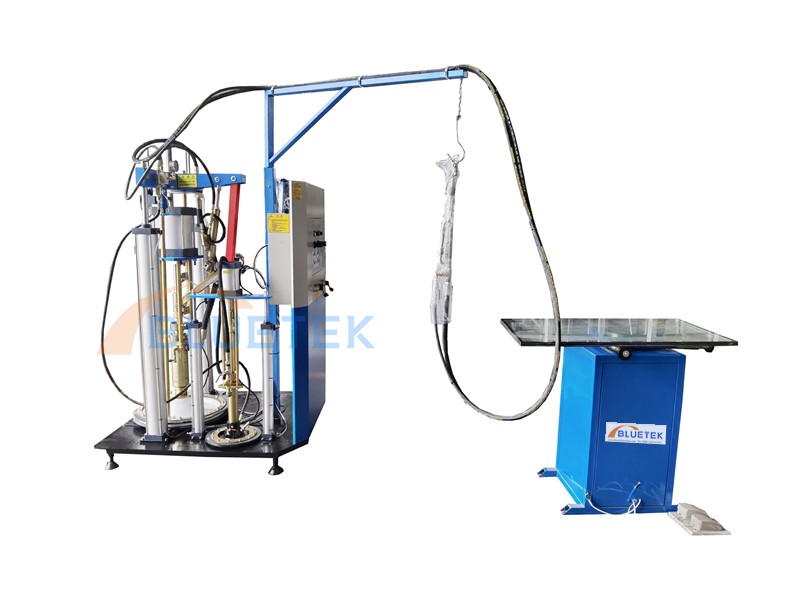

Detail Pictures Of Insulated Glass Manufacturing Equipment
