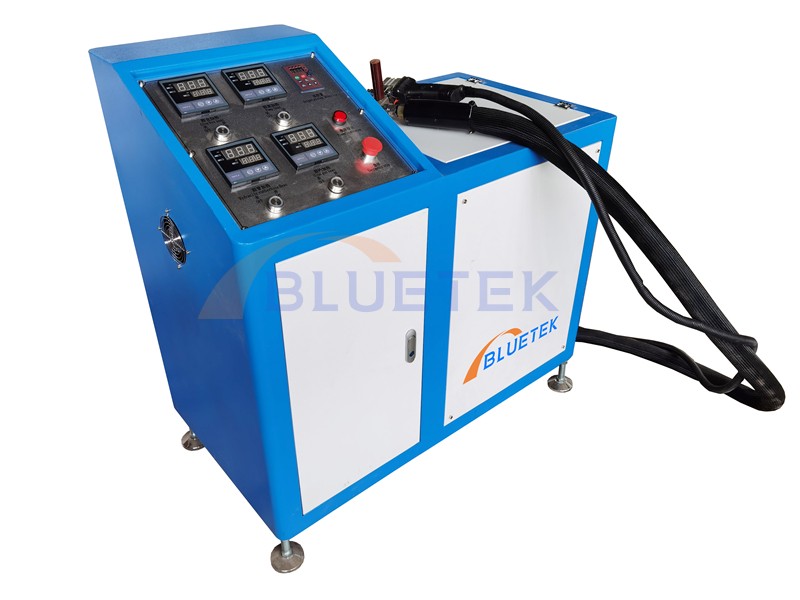

Hot Melt Glue Coating Machine For Double Glass

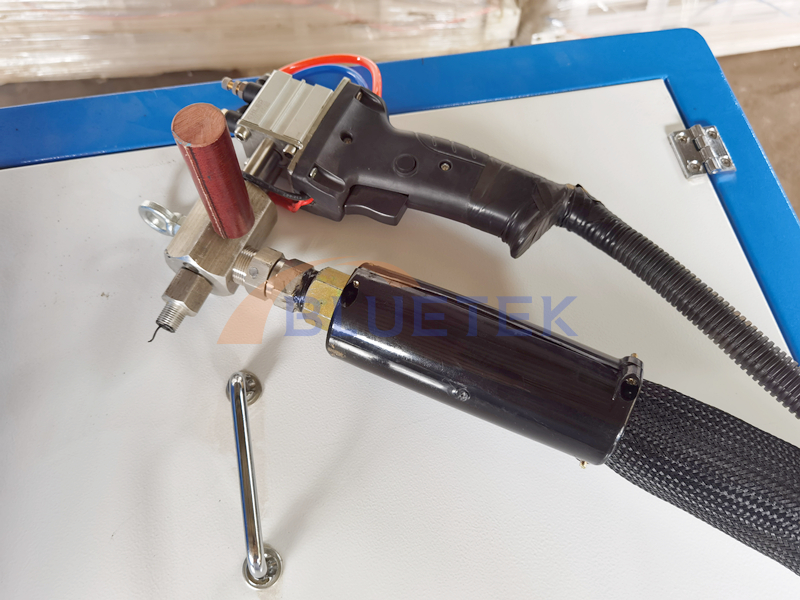

• The hot melt glue coating machine is a special machine used for the second sealing of double glazing. It heats the solid hot melt adhesive to 140℃ ~ 160℃, and coats on double glass edge through glue gun. Preventing water and air from entering the double glass, improving the performance and life of the double glass.

• The hot melt glue machine uses a one-component hot melt sealant, which has a fast curing speed and only takes one minute. Therefore, in order to prevent the temperature of the hot melt glue from decreasing during the gluing process, the glue tank, glue pump, glue tube, and glue gun of hot melt glue machine have heating devices.

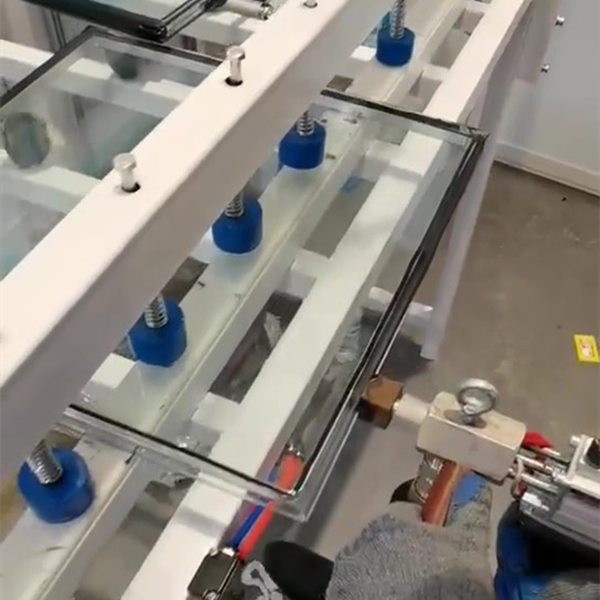

• Hot melt glue coating machine is equipped with a workbench. After clamping double glass, the hot-melt glue is applied with the glue gun. The operation is convenient, the speed is fast, the glue is evenly applied, and the appearance is beautiful.

Technical Parameters

Model	RDJ02
Product Name	Double Glass Hot Melt Glue Coating Machine
Input Power	5 KW
Power Voltage	380V 3 Phase
Heating Temperature	140℃ ~ 160℃
Cooling Time	1 Minute
Glue Tank	30 KG
Machine Weight	100 KGS
Overall Dimension	650500800 mm
