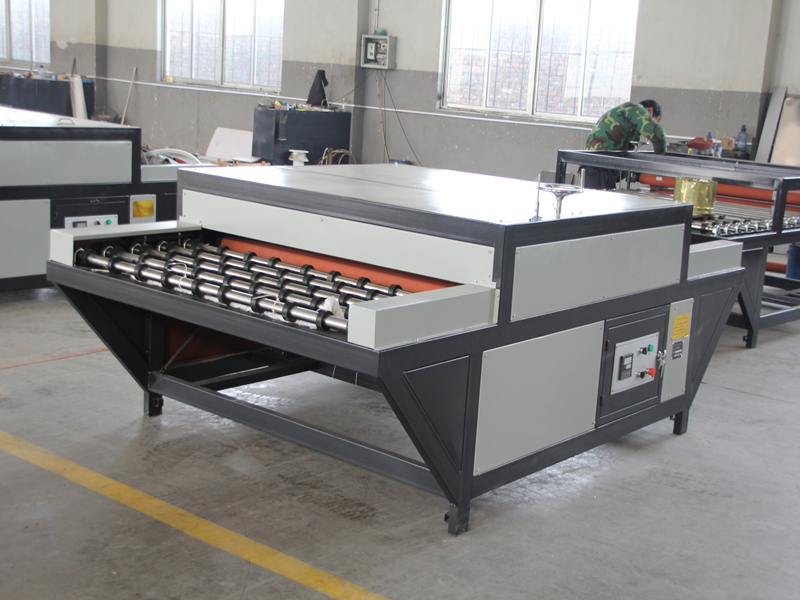

• Insulating glass hot pressing machine is a professional machine for producing butyl spacer type insulating glass. After the butyl spacer sticks two pieces of glass together, the heating tube of hot pressing machine is heated to melt the butyl glue spacer and maximize the viscosity between the butyl spacer and glass, and then rollers press the glass and the spacer together.

• The working speed of the insulating glass hot press can be adjusted, the heating temperature, and the width between the rollers can be adjusted according to the size of the insulating glass and the spacer.

• The production process of insulating glass: the horizontal glass washing machine completes the glass cleaning and drying, the glass panels enters spacer assemble table to stick butyl spacer, and then assemble the second piece of glass panel; the insulating glass enters the hot pressing machine to complete the heating and pressing; Hot melt coating machine seals the second sealant to improve the sealing and sound insulation performance of the insulating glass.

Technical Parameters

Product Model	RYJ1600
Product Name	Insulating Glass Hot Pressing Machine
Power Voltage	380V 3 Phase / Customize
Input Power	19 KW
Insulating Glass Thickness	Max. 50mm
Max. Insulating Glass Size	1600* 2000 mm
Min. Insulating Glass Size	300*300 mm
Transmission Speed	1 ~ 5M / min
Temperature Control Range	0℃ ~ 300℃
Overall Dimension	2700*2200*1100mm
Weight	400 KG

• The heating system of hot pressing machine includes upper and lower light boxes and a heat preservation cover. It adopts halogen lamps for heating, which has the characteristics of fast heating and high thermal efficiency. And is equipped with automatic thermostat control device.

• The rolling system has six pieces of rubber rollers to press the insulating glass. By pulling the ratchet wrench to drive the lead screw to rotate, the distance between the upper and lower rubber rollers can be adjusted to adapt to different specifications of rubber spacer and different thicknesses of glass, with a maximum lamination thickness of 50 mm.
