1. Aluminum corner crimping machine is mainly used for punching riveting connection of aluminum alloy doors and windows at 90° angle. The maximum height of punching riveting is 160mm.
2. Using of programmable controller (PLC) control ensures the stability and reliability of the equipment operation.
3. High-power hydraulic station, stable and reliable work.
4. The sinking multiple combination positioning system ensures positioning accuracy and facilitates window frame access.
5. The combination of strong magnetic tools is adopted, which makes it quick and convenient to adjust the tools.
6. The auxiliary positioning front and rear moving position adopts digital display, and the size is intuitive to read and easy to adjust.
7. Please leave us a message to get the aluminium corner crimping machine price.

Technical Parameters

Model	LZJ05-160
Proudct Name	Aluminium Corner Crimping Machine Price
Power Volatge	Customize
Input Power	3 KW
Air Consumption	30L /min
Fuel tank capacity	50L
Hydraulic Pressure	50 KN
Rated Oil Pressure	15MPa
Profile Height	160 mm
Overall Dimension	1800×1200×1250mm
Weight	500 KG

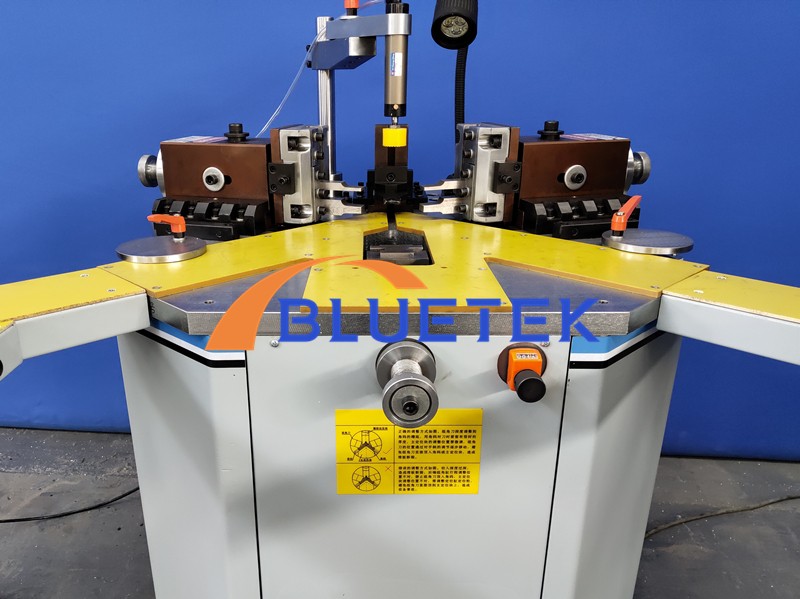

Detail Pictures
