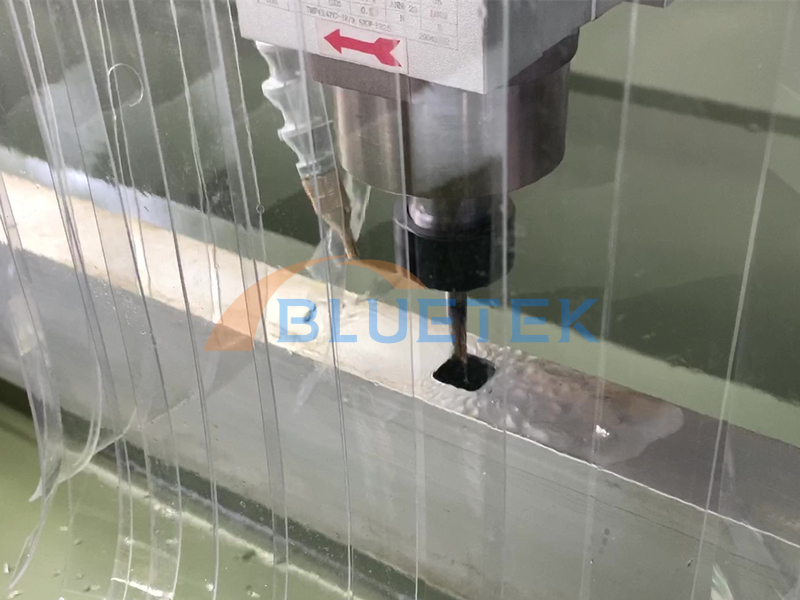

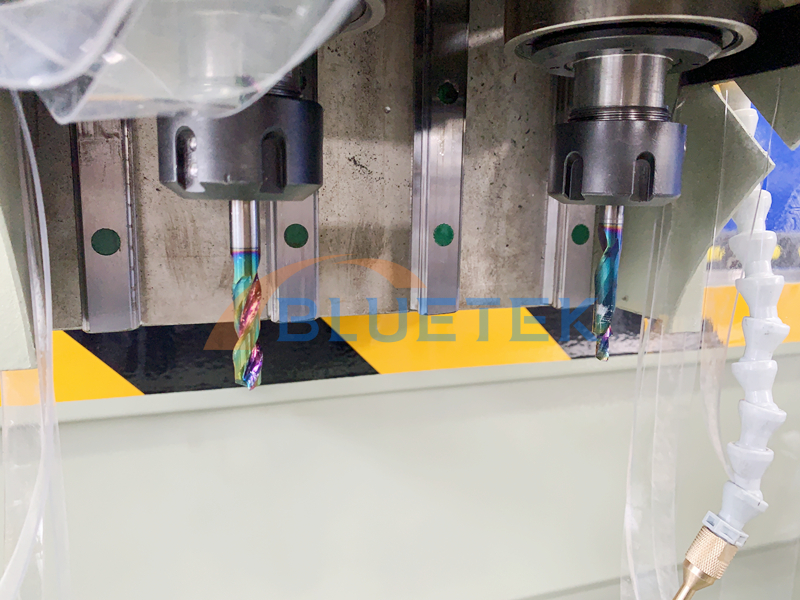

1. The double-head CNC milling machine for aluminium is twice as efficient as ordinary CNC milling machine. Two milling heads can complete milling, drilling, engraving, cutting, tapping, and machining of stepped holes. Save time for changing tools.

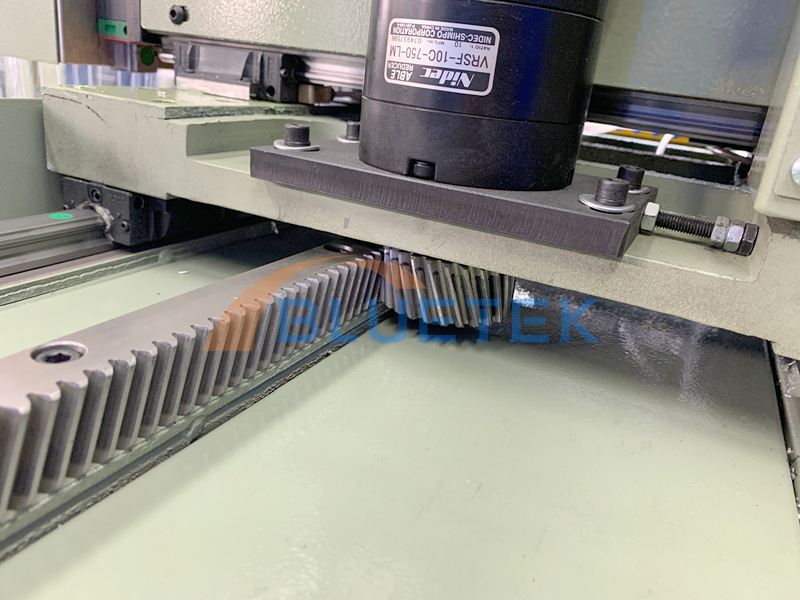

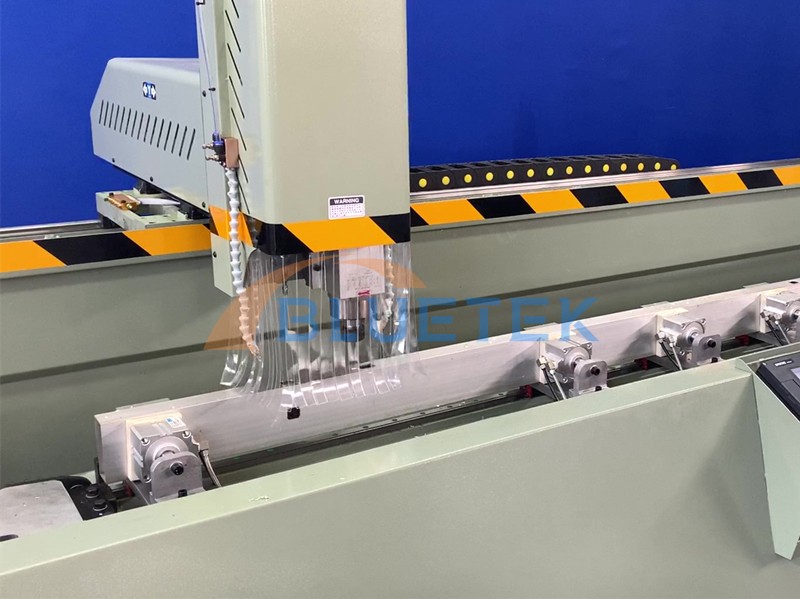

2. The effective processing length is 3 meters, and the worktable can be turned over on three sides to realize the processing of three sides of aluminum. X, Y, Z axis adopts Taiwan SYNTEC servo motor, with high stability.

3. Aluminium cnc machine for sale, using Taiwan's SYNTEC CNC system (Option : PA system), the visual processing graphics, only need to select the graphics, input the size, the operation can be completed. Greatly reduces the difficulty of operation.

4. Clamps avoidance function (Optional). After entering the coordinates of the graphic, the cylinder clamps will automatically move to avoid the position of the milling cutter. No manual movement of aluminum is required.

5. BLUETEK has nearly 20 years of experience in the manufacture of aluminum processing equipment, not only has been highly praised in the field of aluminum door and window machines, but also has rich experience in industrial aluminum customized solutions.

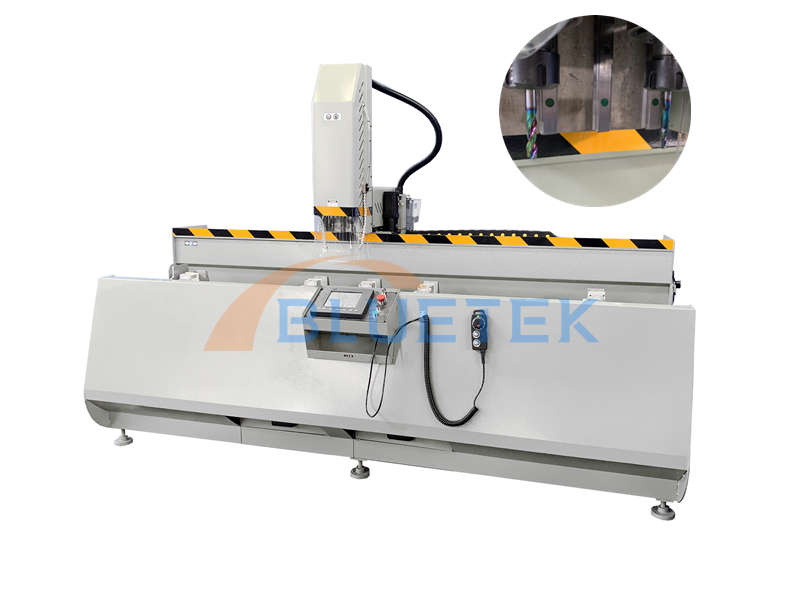

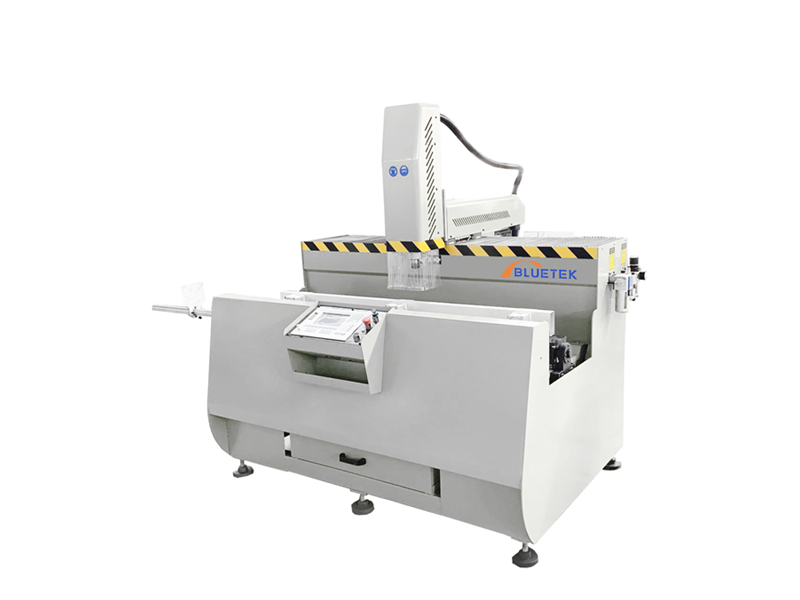

Technical Parameters Of Double Heads CNC Milling Machine for Aluminium

Model	LSKX2-CNC-3000	LSKX2-CNC-2500
X Axis Process Range	3000 mm	2500 mm
Y Axis Process Range	150mm	150mm
Z Axis Process Range	150mm	150mm
Spindle Power	3.5 KW * 2	3.5 KW * 2
Total Power	9.0 KW	9.0 KW
Air Pressure	0.5 ~0.8 Mpa	0.5 ~0.8 Mpa
Process Angles	90° , 0° ,-90°	90° , 0° ,-90°
Spindle Speed	18000 r/min	18000 r/min
Overall Dimension	400015001800 mm	360015001800 mm
Weight	2000 KGS	1800 KGS
