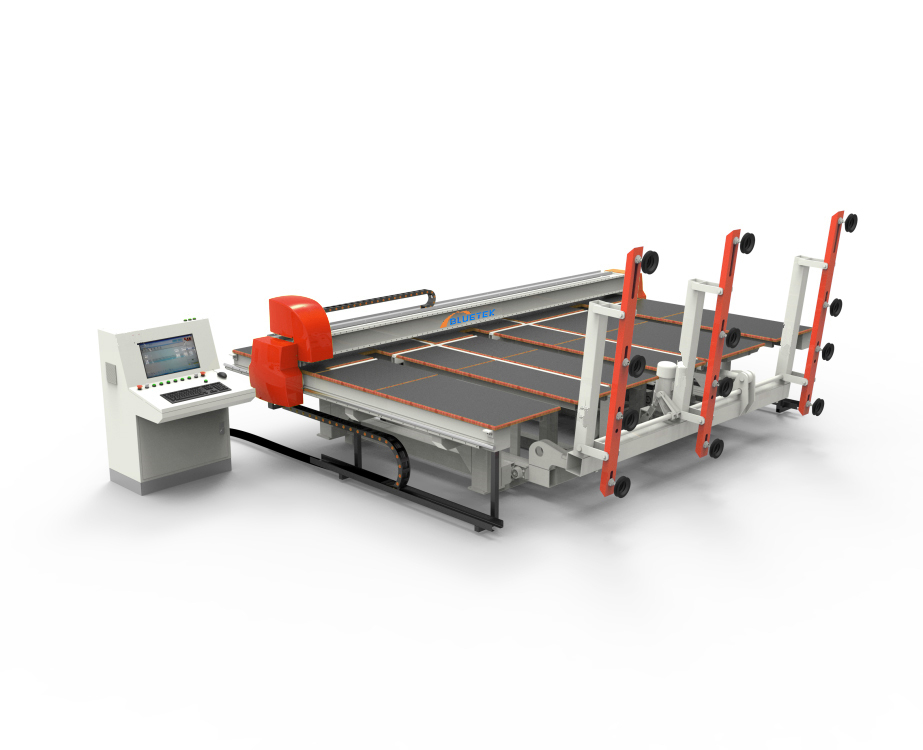

Automatic Glass Cutting Table, Glass Cutting Equipment

• The Automatic glass cutting table is a glass cutting equipment for cutting glass panels, mirrors, automotive glass, art glass, and can cut circles, rectangles, triangles, diamonds, and other special shapes. Small footprint, high cutting precision, high cutting rate, stable performance and simple operation.

• Glass cutting table is equipped with loading arm and breaking bar, it can realize loading, optimization, cutting and breaking in one table. Multi-function and cost-effective.

• The cutting knife is automatically filled with oil, and the pressure is automatically adjusted to achieve stable cutting and perfect cutting results.

• Handheld wireless remote control device, the cutting table can move 360 degrees freely, and one-key start to realize automatic loading, cutting and unloading.

• The glass loading arm has a lifting function, which automatically finds the position and angle of the glass, and pulls up when sucking the glass panel to prevent the second piece of glass from being adsorbed, high safety.

• If the customer cuts small size glass panels, the loading arm can be removed, and the glass can be manually loaded to reduce the cost of the machine.

Technical Parameters

Product Model	LKBQ-CNC-2721
Product Name	CNC Glass Cutting Table, Glass Cutting Equipment
Input Power	8 KW
Power Supply	380V 50Hz 3 Phase
Air Pressure	0.6~0.8 MPa
Max. Cutting Size	2440*2000 mm
Cutting Thickness	2 ~ 19 mm
Drive Model	Servo Motors
X axis beam speed	0 ～ 200m / min
Y axis beam speed	0 ～ 200m / min
Cutting accuracy	+/- 0.2mm
Quantity of Loading Arms	2 Arms
Quantity of Sucker	8 PCS
Machine Size	30002550mm1100mm
Weight	2000 KGS

Configuration of Automatic Glass Cutting Table

Cutting Software	IGM, China Top Brand
Optimization Software	Guiyou, China top brand
Servo Drive	NMH , Germany
Servo Motor	NMH , Germany
Control System	SIEMENS, Germany
Cutting Knife	BOHLE, Germany
Solenoid Valve	AirTAC, Taiwan China
Pressure Regulating Valve	SMC, Japan
Encoder	Kuebler, Germany
Scanner	Panasonic , Japan
Low Voltage Appliances	Schneider, France
