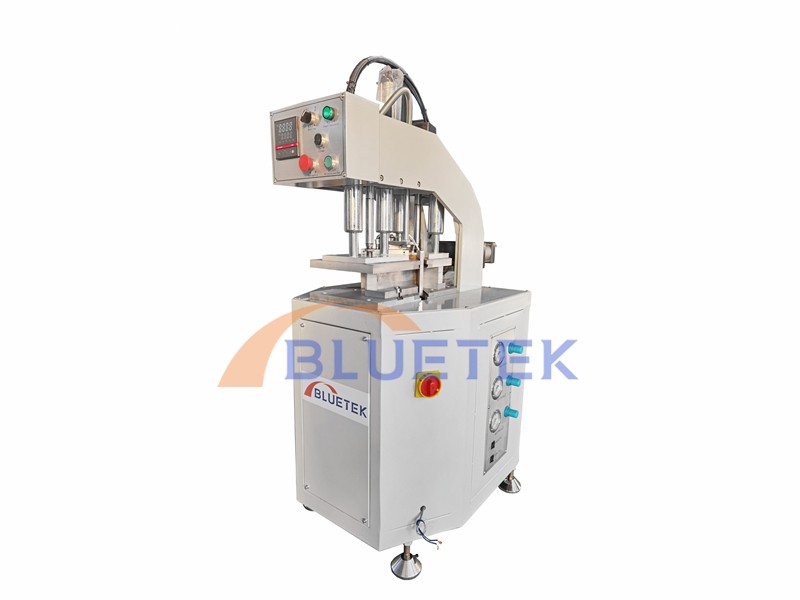

1. Single head UPVC welding machine is a very economical and affordable single head welding machine for upvc window door. It is suitable for most door window systems and is the best choice for small shops.

2. Even it is single head welding machine,it adopts combined four-layer backing plates, which can be adjusted according to the height of UPVC profile; the pressing clamps adopts solid aluminum plates, which makes the welding process more stable. The welding effect is guaranteed to the greatest extent.

3. The machine tool is integrally cast, strong and durable, and will not deform after years of use.

4. PLC control, simple operation and high stability. Clamp pressure, heating time, welding time and heating temperature can be adjusted freely to achieve the best welding effect.

5. UPVC single head welding machine is very popular in Central and South America, India and Pakistan. If you are interested in becoming our partner and agents, we will not only provide you with the lowest factory price, but also provide the most timely and professional technical services.

6. Working principle of single head upvc welding machine :
Profile Positioning - Clamping - Heating and Melting - Jointing - Completing. The transmission system of this upvc single head welding machine adopts pneumatic transmission. The digital temperature indicating regulator controls and adjusts the welding temperature. The programmable controller controls each process step. Each output relay of the controller is equipped with switches to facilitate the individual adjustment of the solenoid valve pneumatic actuators. ,operate.

Technical Parameters

Model	HJ02-120
Product Name	Single Head UPVC Welding Machine for Window Door
Input Power	1.5 KW
Power Voltage	220V 50Hz
Air Pressure	0.5 ~ 0.8 MPa
Welding Profile Height	20 ~ 120 mm
Welding Profile Width	120 mm
Welding Angle	90°  ( 30° ~ 180° by Auxiliary tools )
Weight	260 KGS
Overall Dimension	750*600*1700 mm

Detail Pictures
