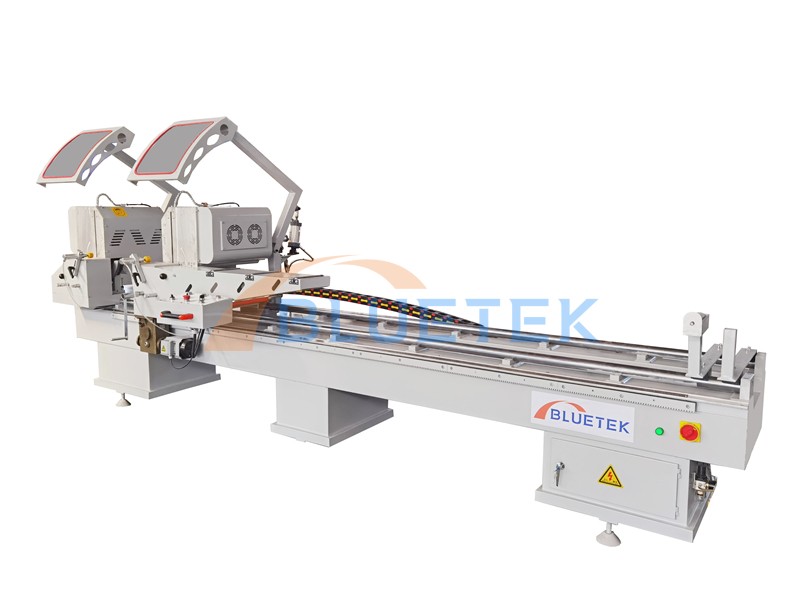

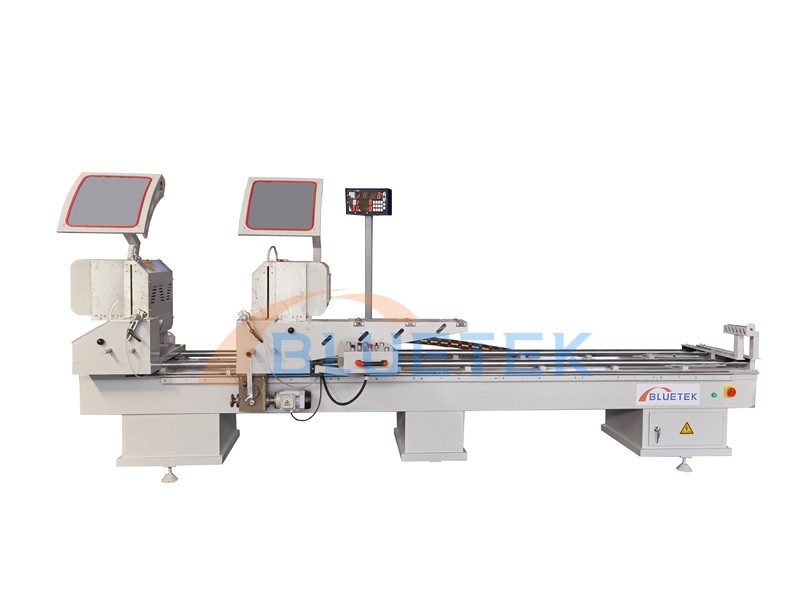

1. SSJ06-CNS-450x3700 aluminium window double mitre saw is the most classic model for cutting aluminum door and window profiles, aluminum and UPVC door and window profiles. Stable performance and simple maintenance are favored by many customers at home and abroad.

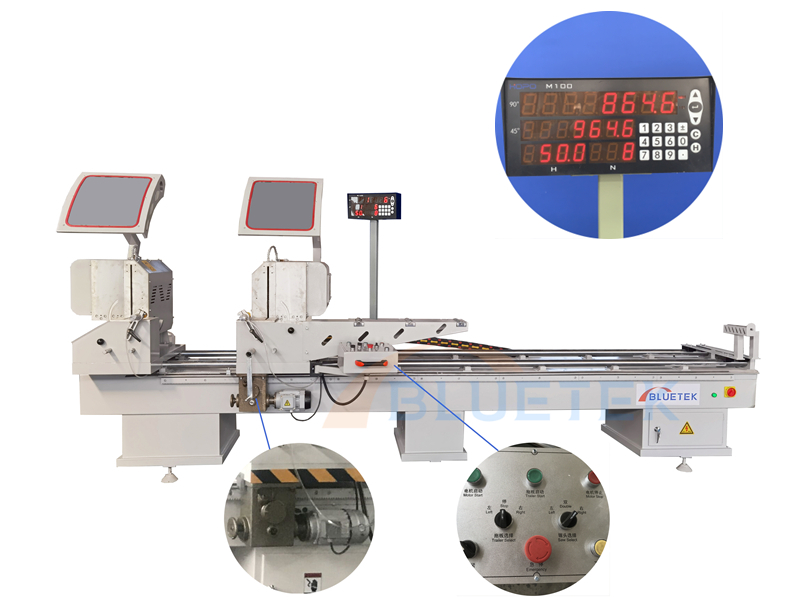

2. The positioning of it's right saw head is driven by motor, and there is no need to manually adjust the length; the conversion of 45 degree and 90 degree cutting angle requires a manual rocker; equipped with a digital disply ruler, it can display the current cutting length more intuitively. Easy to operate and high positioning accuracy.

3. The aluminum alloy special saw blade imported from Japan is used, which has a beautiful cutting section and a long service life; the low-voltage electrical appliances and pneumatic components use well-known Chinese brands, and the customer's designated brands can also be used according to requirements.

4. The longest cutting length of the standard version is 3700mm, which can be lengthened according to customer requirements.

5. SSJ06-450x3700 aluminium double mitre saw is the basic model without digital ruler function.

Technical Parameters

Model	SSJ06-CNS-450x3700
Product Name	Digital Display Aluminium Window Double Mitre Saw
Model	SSJ06-450x3700
Product Name	Aluminium Double Mitre Saw
Input Power	2.2KW * 2
Power Supply	380V 50Hz ( Customized on demand ）
Air Pressure	0.6 -0.8 Mpa
Diameter of Saw Blade	18 Inch / 450 mm
Cutting Angles	Outside 45° , 90° , Inside 45°
Cutting Width	125 mm
Cutting Height	200 mm
Cutting Length	3700 mm
Weight	1200 KGS
Overall Dimension	4500*1150*1700 mm
Brand	BLUETEK

Options

1.  High-Precision Aluminium Window Double Heads Cutting Machine

Diameter of Saw Blade : 500mm ; Cutting Angles : outside 45° / 90°

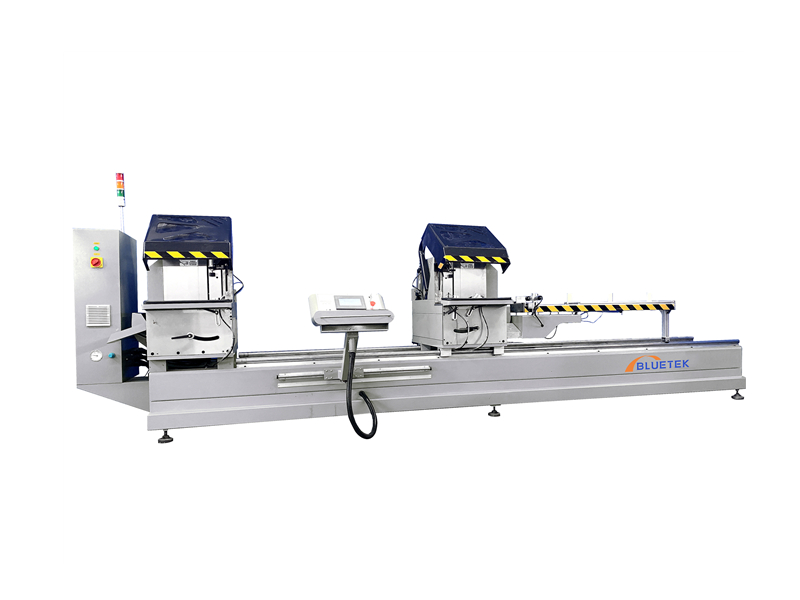

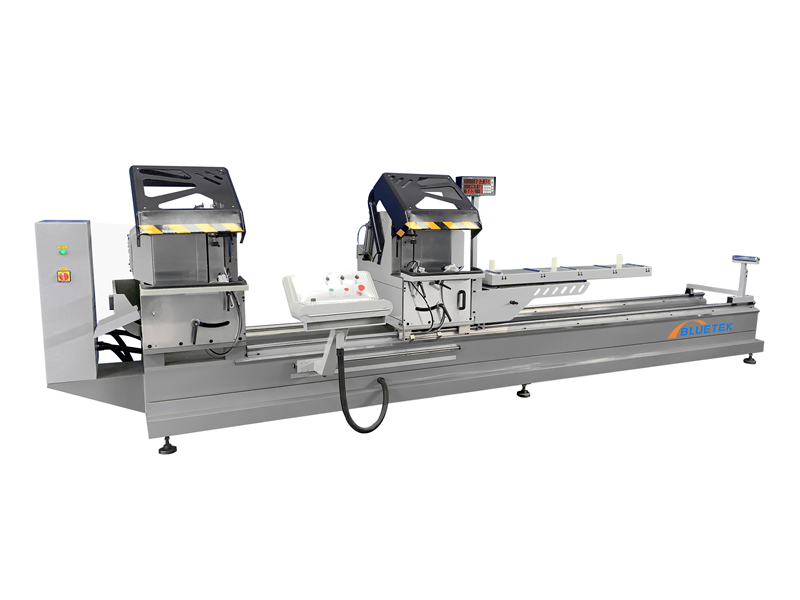

2. CNC Double Heads Cutting Saw

SIEMENS control system, Diameter of Saw Blade : 500mm ; Cutting Angles : outside 45° / 90°
