1. The three-axis UPVC window water slot milling machine is special upvc door window manufacturing machine used for milling the drainage holes. Vertical, horizontal and 45 degree cutters can finish the milling job at the same time with high efficiency.
2. The structure of the whole machine adopts super rigid design, and the treated water slot holes are beautiful and high quality.
3. Independent milling feed mechanism, simple maintenance and convenient operation.
4. The position of the cutter is adjustable, suitable for different series of PVC profile.
5. Electric grinder motor is a joint venture brand of Hitachi, Japan, with reliable quality and long service life.

6. The milling length can be adjusted within 60mm, and the application range is wide.

7. Lower head of upvc window slot machine automatically changes the tool, once clamping, and automatically completes the processing of the milling holes.
8. The bed adopts linear bearing motion pair to ensure long-term working accuracy.

Technical Parameters

Product Model	SCX03-3-60
Product Name	UPVC window water slot milling machine
Power Voltage	Customize
Input Power	1.5 KW
Spindle Motor Speed	25000 r/min
Air Pressure	0.6 ~0.8 MPa
Diameter of Milling Cutter	5 mm
Milling Length	30 ~ 60 mm
Overall Dimension	1200*1200*1400 mm
Weight	260 KG

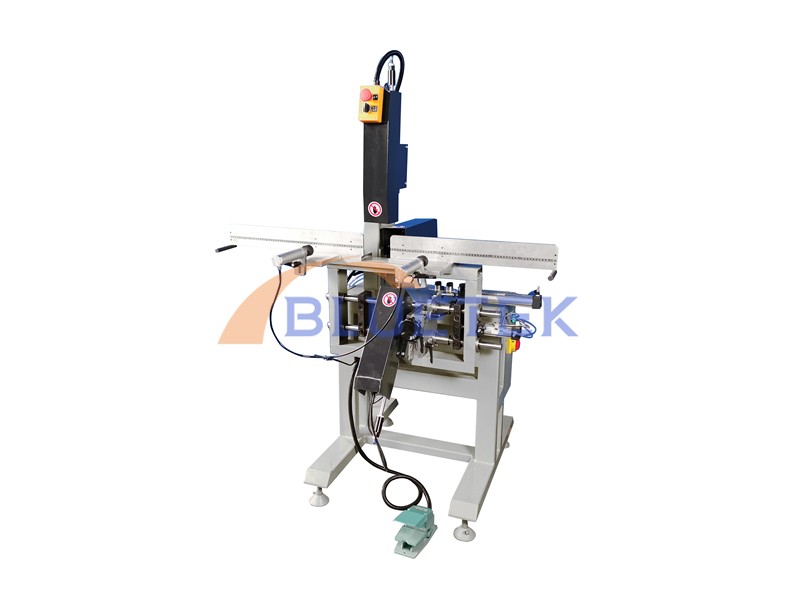

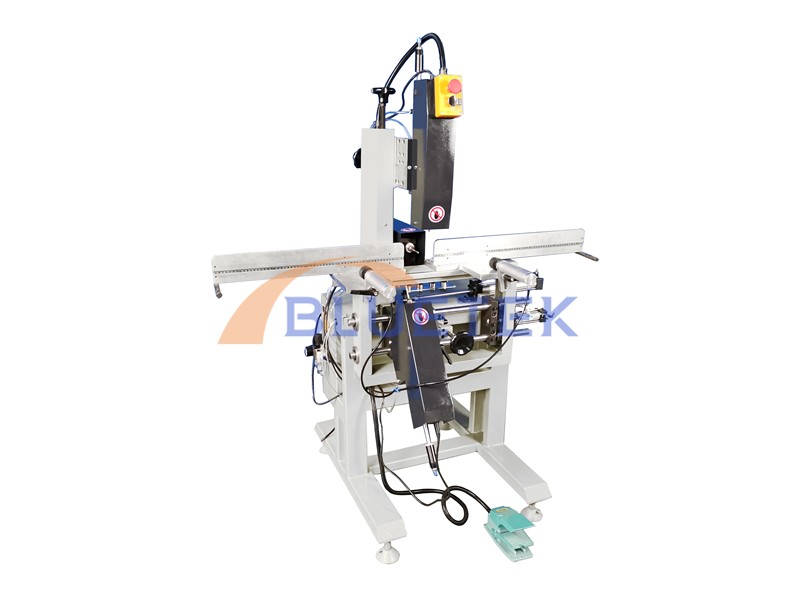

Detail Pictures
