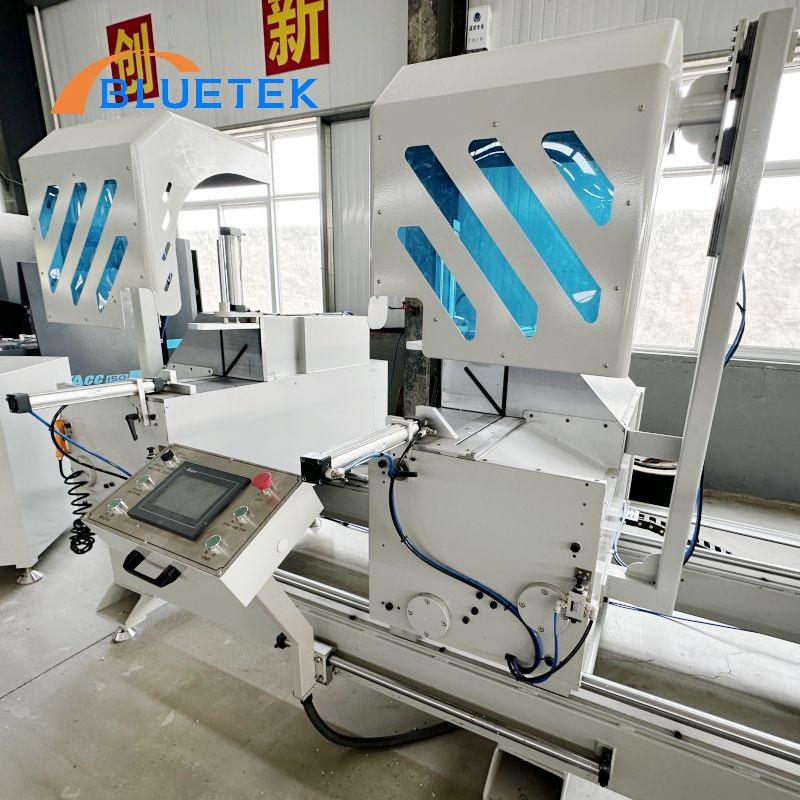

1. LJZ2FJ-CNC-500x5000 PVC window door cutting saw is CNC automatic, for cutting multiple PVC profiles. It's Max. cutting width 320mm, can cut 4 pcs of profiles at same time.

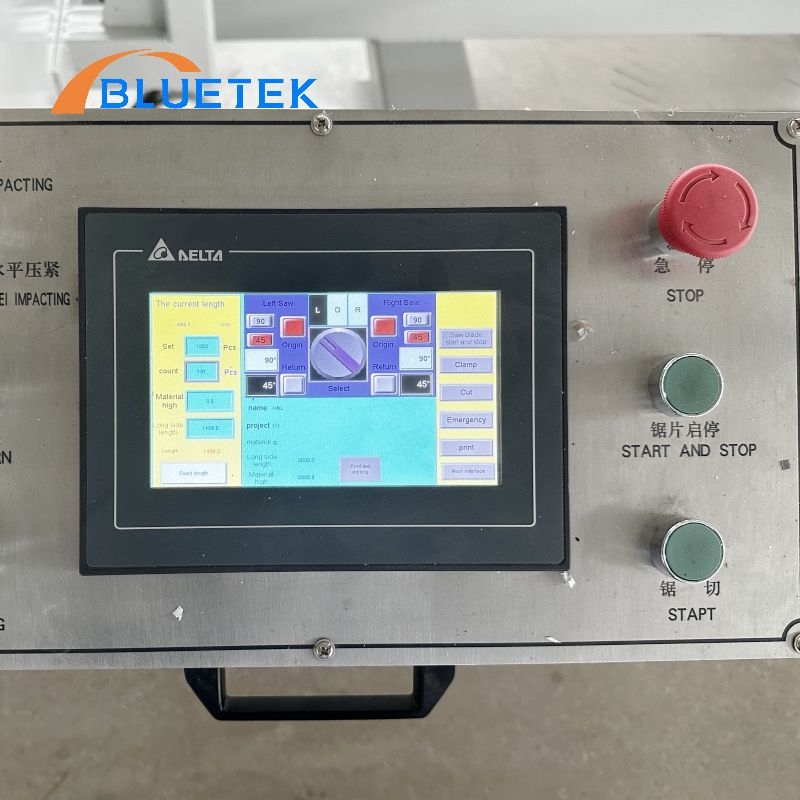

2. The CNC system of Full automatic PVC window door cutting saw is from Taiwan DELTA, English operation interface ; It has automatic positioning, size compensation functions and high cutting accuracy.

3. Whole machine has reasonable structural design and high processing precision, and is suitable for the production of high-quality PVC window door .

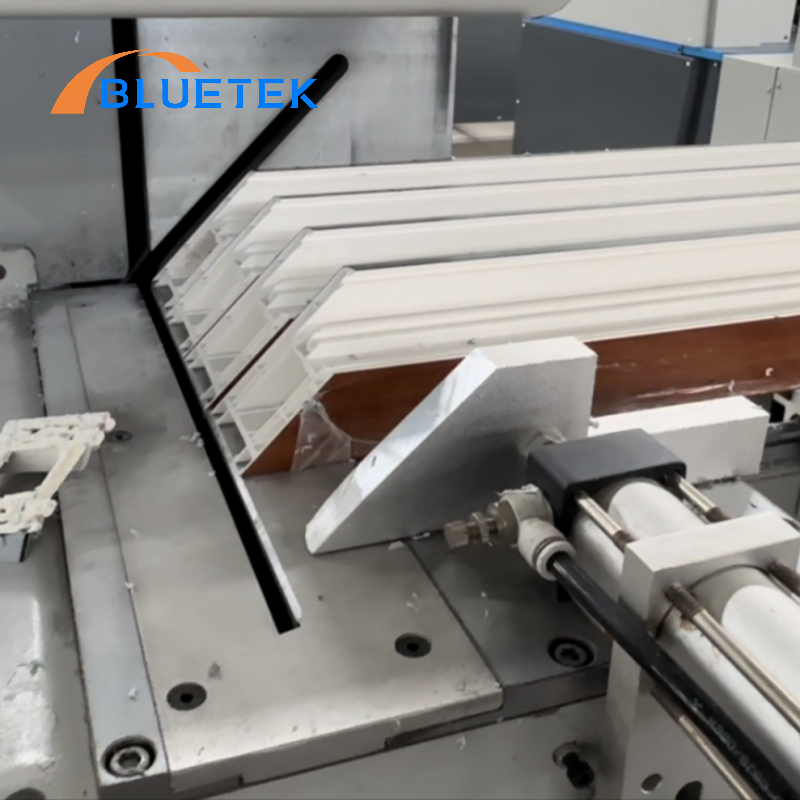

4. It's vertical clamping and horizontal clamping can ensure accurate positioning, which is suitable for different kinds of PVC profiles.

Technical Parameters

Product Model	LJZ2FJ-CNC-500x5000
Product Name	Full Automatic PVC Window Door Cutting Saw
Motor Power	3.0KW * 2
Power Voltage	380V 50Hz 3Phase / As Request
Air Pressure	0.5-0.6 Mpa
Air Consumption	100 L / min
Saw Blade Specifications	500mm*30mm*4.3mm, 120T
Motor Rotate Speed	2800 r/min
Sawing Width	320mm
Sawing Angles	45° /  90°
Sawing Length	450mm ~5000mm
Overall Dimension	7000*1700*1700mm
Weight	1900 KGS
