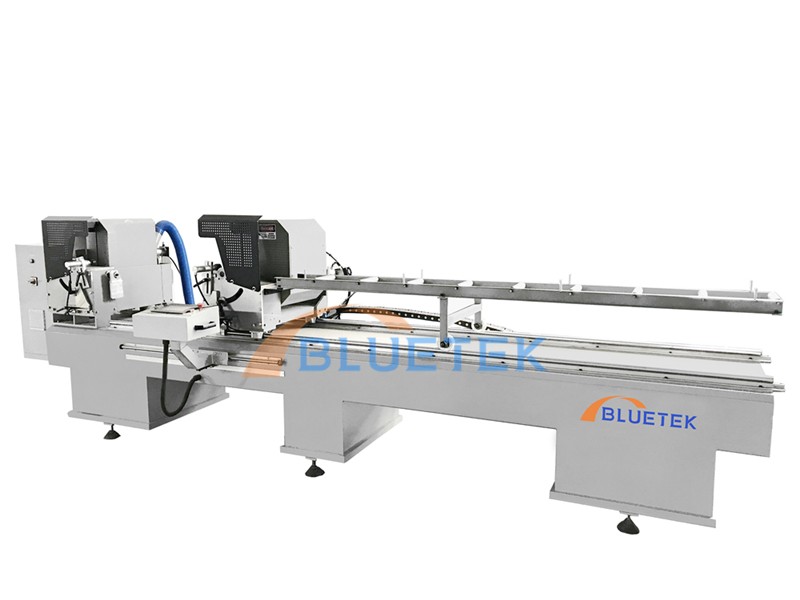

1. SSJ07-CNC-450x3600 CNC automatic double head UPVC window frame cutting machine is a very high-end upvc window manufacturing machinery, using SIEMENS servo control system, with a high degree of automation.
2. The right head movement of the cutting saw adopts a linear motion range, which is driven by a servo motor, and is driven by a high-precision lead screw with high accuracy and stability.
3. Pneumatic swing angle in 45 degrees and 90 degrees, and the repeat positioning accuracy is high.
4. The spindle motor directly drives the saw blade, with stable feed and good cutting effect.
5. The left saw head is equipped with an ultra-short material cutting device, which can cut small sizes.
6. This CNC upvc window frame cutting machine is one of the most high-end and most stable double-headed cutting machines. It is better than ordinary double-headed saws regardless of the body casting process or other configurations.

Technical Parameters

Product Model	SSJ07-CNC-450x3600
Product Name	CNC Automatic UPVC Window Frame Cutting Machine
Power Voltage	Customize
Input Power	3.0 KW
Air Pressure	0.6 ~ 0.8 Mpa
Diameter of Saw Blade	450mm
Cutting Angles	45°  / 90°
Cutting Width	125 mm
Cutting Height	165 ~ 200 mm
Cutting Length	450 ~3600 mm
Overall Dimension	4450*1150*1600 mm
Weight	1450 KG

Standard Accessories

PLC	SIEMENS , Germany
Touch Screen	SIEMENS , Germany
Servo Motor	SIEMENS , Germany
Servo Driver	SIEMENS , Germany
Low-voltage Electrical Appliances	Schneider, France
Buttons	Schneider, France
Solenoid Valve	AirTAC , Taiwan China
Air Cylinder	AirTAC , Taiwan China
Saw Blade	UNIKEN , Japan

Detail Pictures

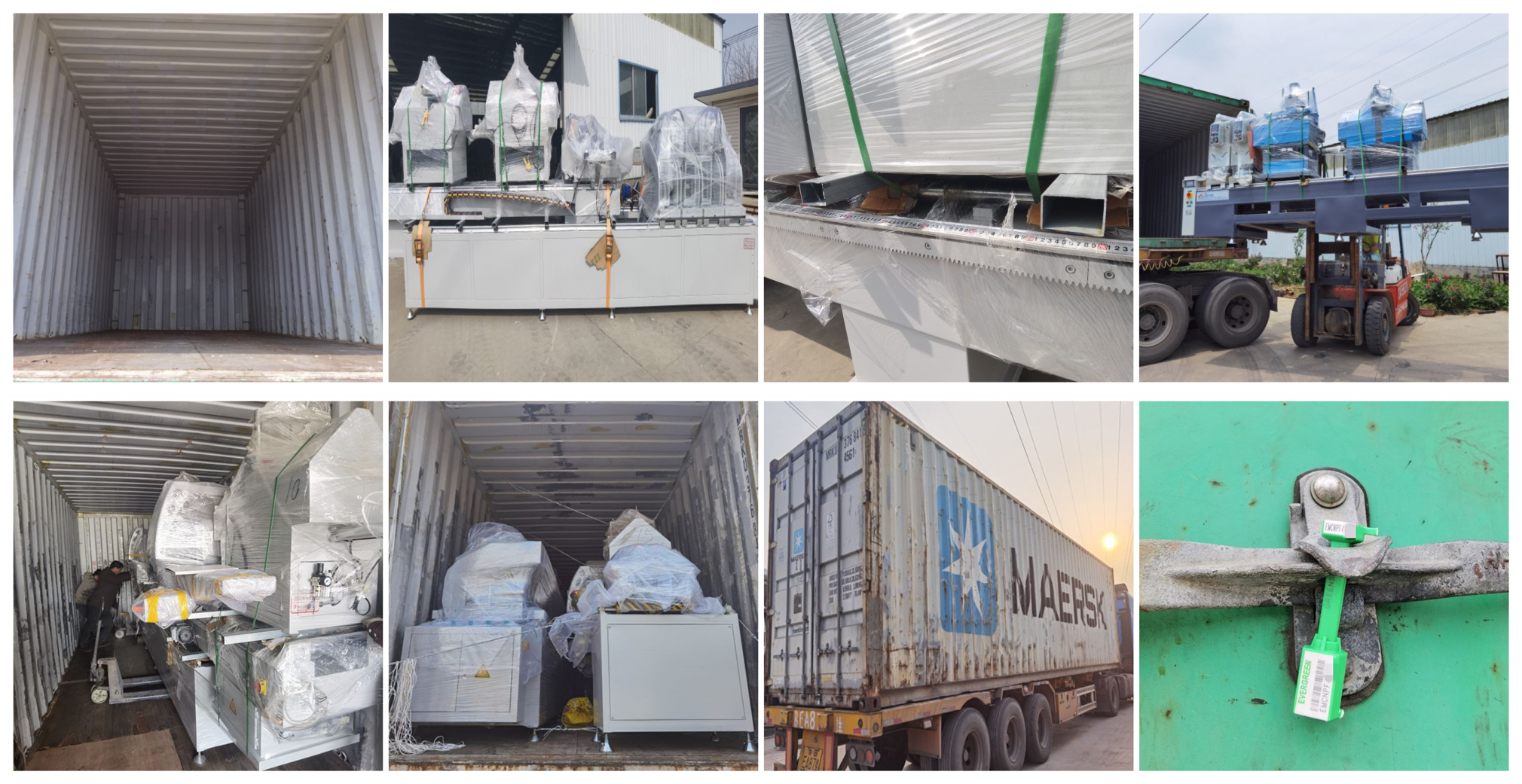

Packing and Delivery Of UPVC Window Frame Cutting Machine

A complete set of door and window machines are generally loaded by FCL ( Full Container Loading ), and square steel pipes and bandages are used to fix the machine, which can not only prevent the machine from being damaged, but also be very firm. The bottom and top of the machine are fixed in the container with steel wire to ensure that it will not shake during the shipping process, so that the machine can reach the destination safely.
