1. Arbitrary angle aluminium frame cutting machine, single head aluminium frame cutting machine is used for cutting aluminium profiles. Turntable workbench with digital angle display, can be adjusted between 22.5° and 157.5°, with precise angle positioning.

2. Using a saw blade with a diameter of 500 mm, feeding from bottom to top, the maximum cutting height is 150 mm, and the maximum width of 90-degree cutting is 300 mm.

3. The frame of the fuselage is integrally cast, milled by CNC machining center, and subjected to aging treatment. The fuselage has very high stability and high precision.

4. The aluminium frame cutting machine adopts the standard digital display rolling conveyor, which ensures the cutting accuracy and is easy to operate.

5. The angle locking function, the automatic opening and closing function of the safety cover, and the current phase sequence protection function make the operator safer.

6. We also have 420mm aluminium frame cutting machine, 600mm aluminium frame cutting machine, 650mm aluminium frame cutting machine, customers can choose according to the size of the aluminum profile, and we will give the most professional advice.

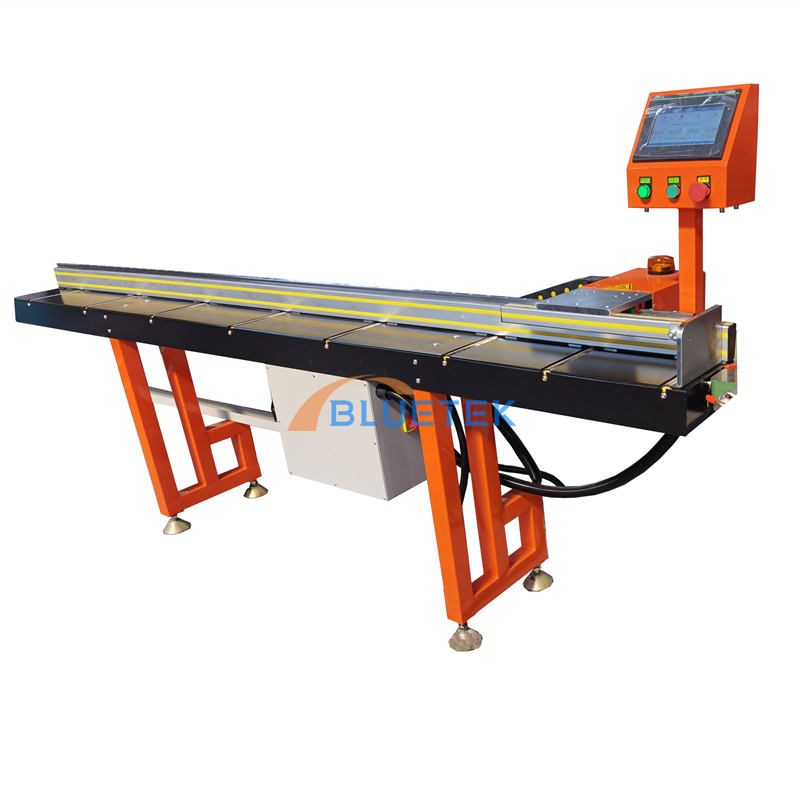

7. Optional device: Automatic CNC rolling conveyor.

Technical Parameters

Model No.	LDJR-500
Machine Name	Single Head Aluminium Frame Cutting Machine
Power Supply	220V 380V 415V 50/60Hz
Input Power	3 KW
Air Pressure	0.5~0.7 MPa
Diameter of Saw Blade	500mm
Cutting Height	150mm
Cutting Width	200~ 300mm
Cutting Angles	22.5° ~157.5°
Cutting Precision	+/- 0.2mm
Machine Packing Size	1250*1250*1800mm
Conveyor Packing Size	2600*450*400mm

Standard Configuration

Saw Blade	WAGEN, Japan
Solenoid Valve	AirTAC, Taiwan China
Power Switch	MEAN WELL , Taiwan China
Low Voltage Appliances	Schneider, France
Spindle Motor	ORMT, China Top Brand

Detail Pictures

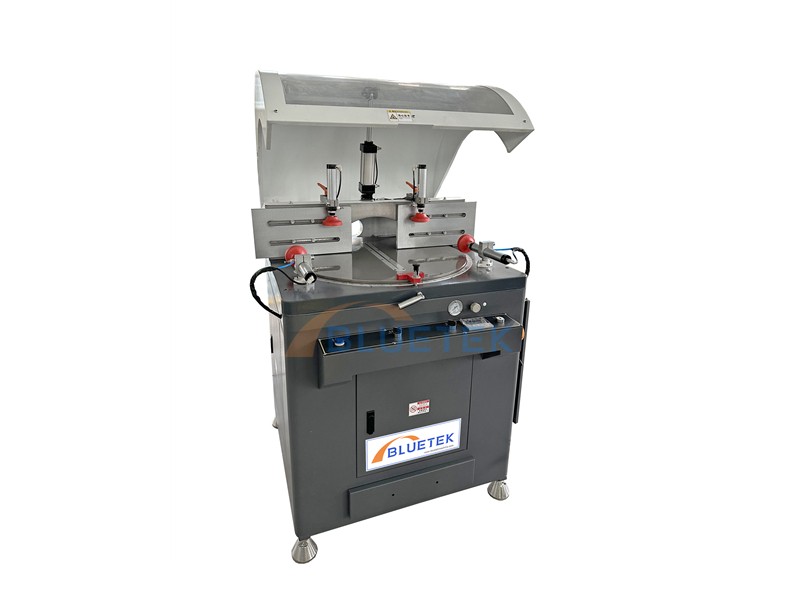

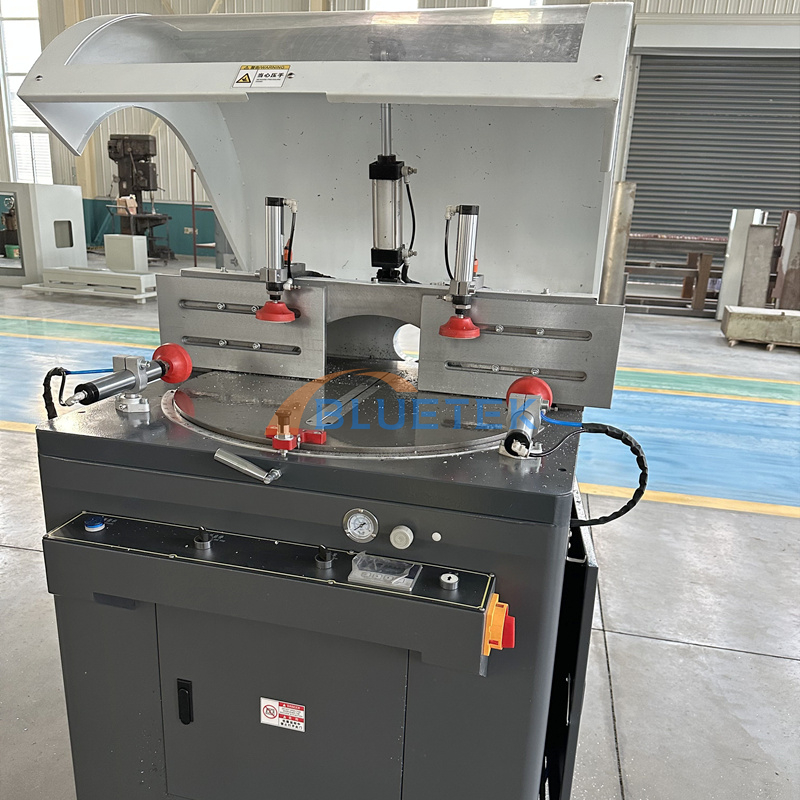

This is the best-selling single-head aluminium frame cutting machine, which can rotate the table and cut any angle between 22.5 and 157.5 degrees. The digital display shows the angle, and the positioning is more accurate. Machine color can be customized.

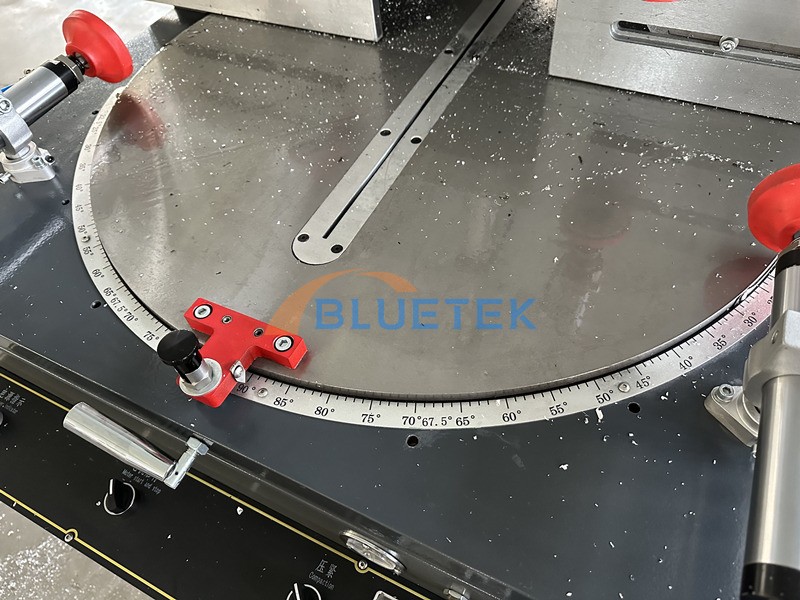

Workbench of aluminium frame cutting machine

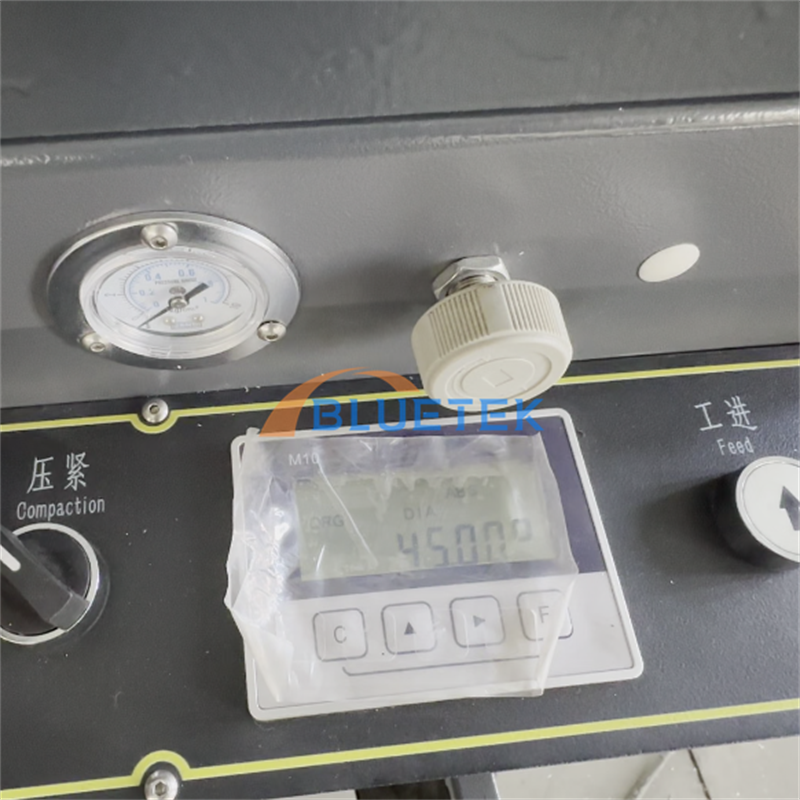

The cutting angle of the aluminium frame cutting machine adopts digital display, which is more intuitive and convenient. There is an error elimination function, and the angle can be changed by inputting.

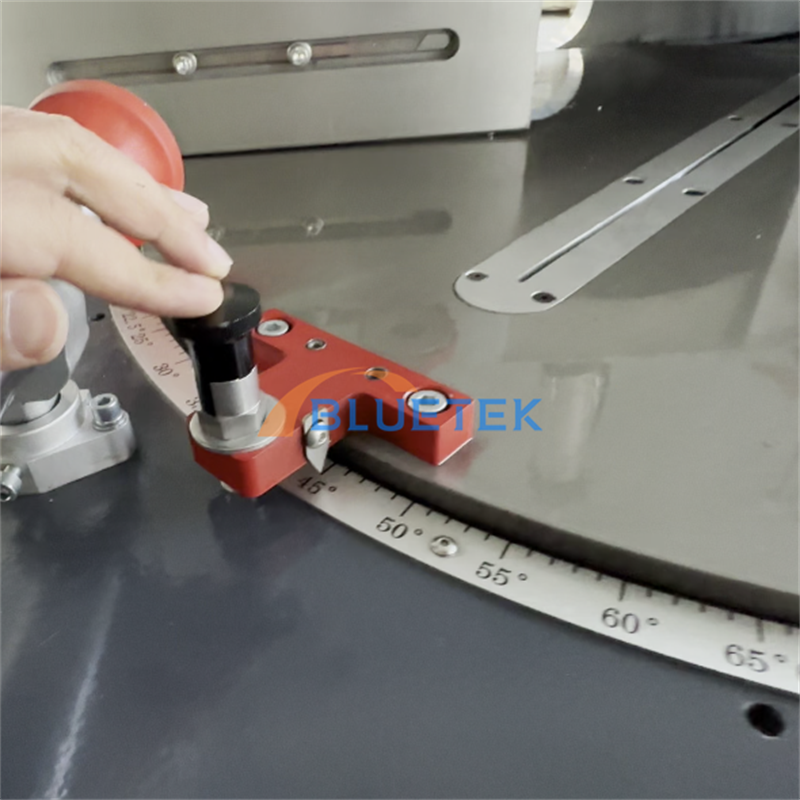

After the angle is adjusted, the worktable can be locked to ensure that there will be no error in the angle during the cutting process.

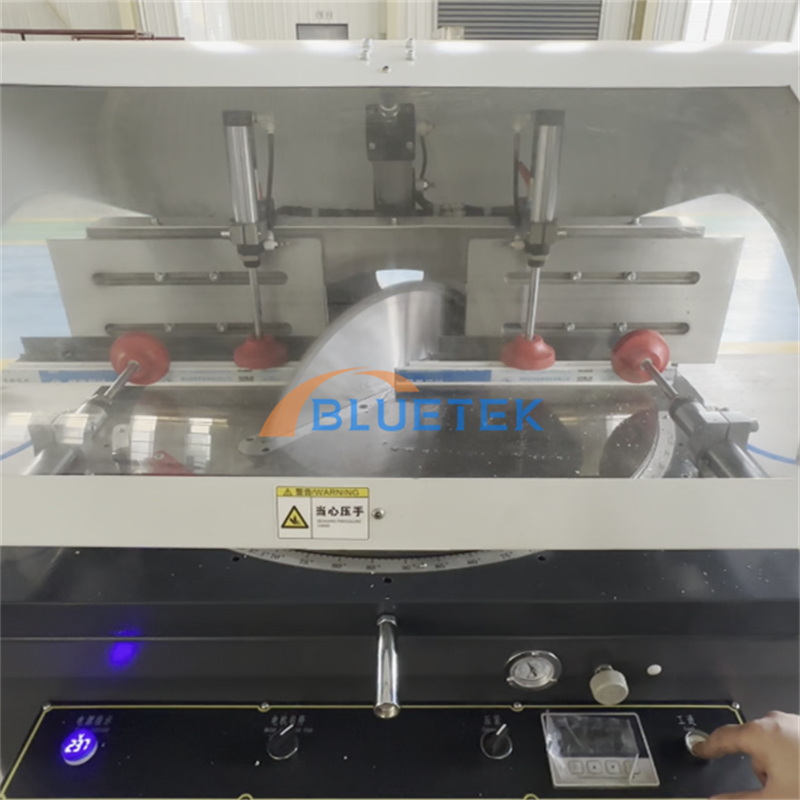

Up cutting mode of aluminium frame cutting machine

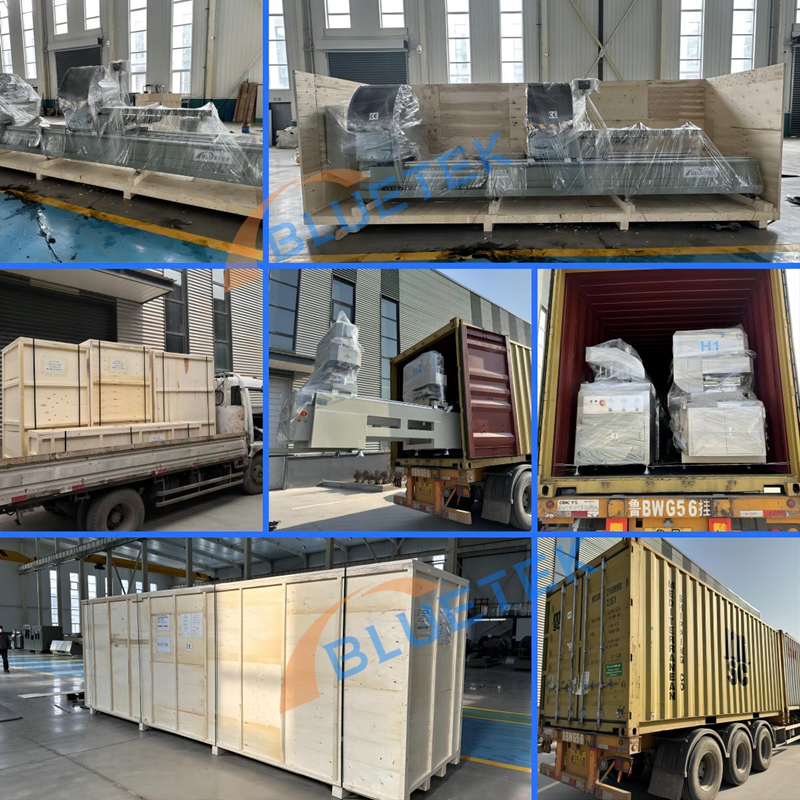

Packing and Shipping For Single Head or Double Heads Aluminium Frame Cutting Machine

Each aluminium frame cutting machine will be packed by plastic film and fumigation-free wooden box, the transmission position of the machine is coated with special mechanical oil to prevent rust during long-distance transportation. We can provide customers with faster and lower cost sea freight services.
