1. Pneumatic aluminium profile punching machine is used for punching various shaped holes of doors and windows. Using air source as power, the machine structure is simple, easy to maintain and operate.

2. A set of molds has 4 stations, which can complete the punching processing of the handle installation groove, corner cutting, punching of the transmission end (∮6, ∮10) and water slot.

3. The tool of the mold is wear-resistant and has a long service life. Can be customized.

Technical Parameters

Product Name	Pneumatic Aluminium Profile Punching Machine
Product Model	LYJ-16
Number of Stations	1 Mold with 4 Stations
Air Consumption	60L /min
Rated Pressure	16KN
Air Pressure	0.6 ~0.8 Mpa
Mold Size	340×240×500mm
Punching Stroke	30mm
Overall Dimension	350*350*1400 mm
Weight	50 KG

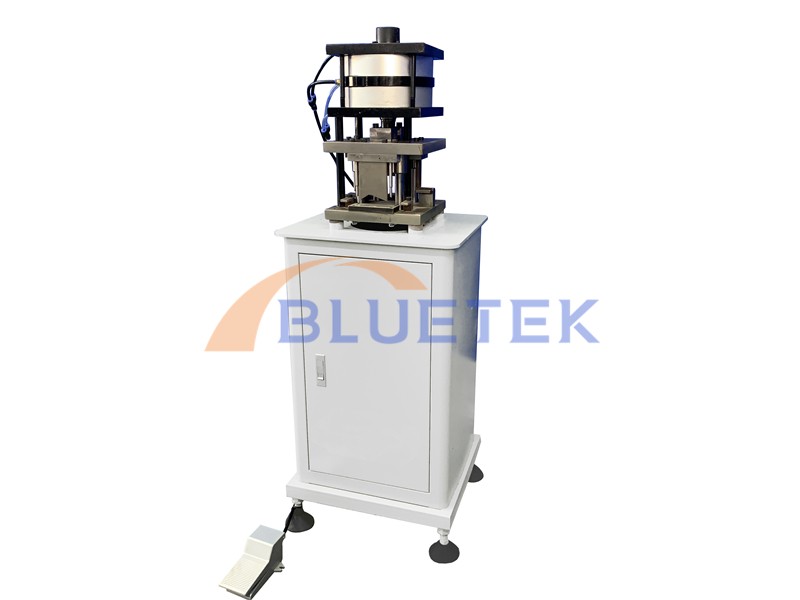

Detail Pictures
