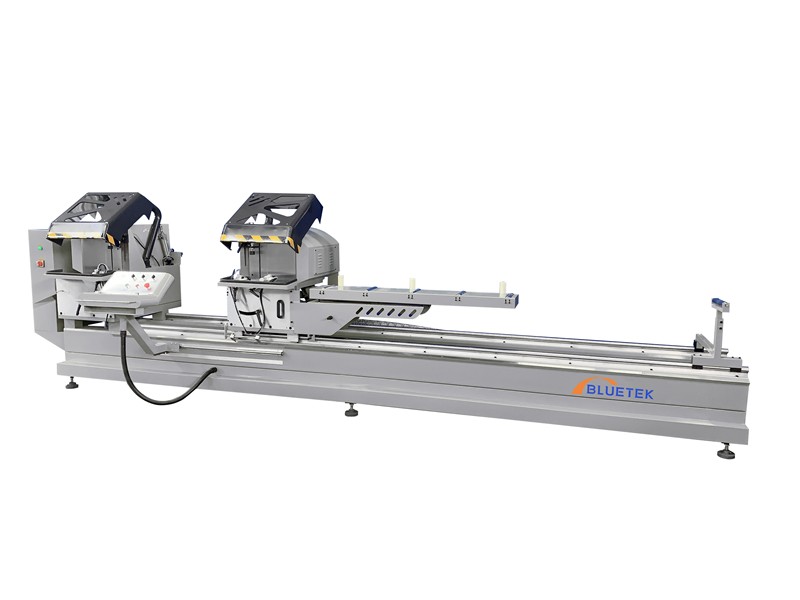

1. High precision aluminium window automatic cutting saw is used to cut aluminum alloy door and window profiles, which can cut 45 and 90 angles. The diameter of the saw blade is 500 mm, and the widest cut is 135 mm.
2. Double-head miter saw automatic machine for aluminium windows, automatic angle conversion, easy and convenient.
3. The main shaft motor is directly connected to the saw blade, and the saw blade is fed back and forth on the precision square guide rail. The sawing is stable and the accuracy is high.
4. The safety shield opens and closes automatically, which is very safe.
5. Phase sequence protection device: It can effectively protect the equipment when the phase sequence is disconnected or connected.
6. Aluminium window cutting saw is the first process in the production of aluminum doors and windows, which determines the accuracy of door and window dimensions and the quality of doors and windows. Our precision saws can help customers improve efficiency and safe production.

Technical Parameters

Product Model	LJZ2B-500x4200
Product Name	High Precision Aluminium Window Automatic Cutting Saw
Air Pressure	0.6 ~0.8 MPa
Input Power	2.2KW * 2
Power Volatge	Customize
Saw Blade Diameter	500 mm
Cutting Width	135 mm
Cutting Height	160 ~ 300 mm
Cutting Length	400 ~ 4200 mm
Motor Rotary Speed	3000 r/min
Overall Dimension	5600*1260*1700 mm
Weight	1800 KG

Detail Pictures
