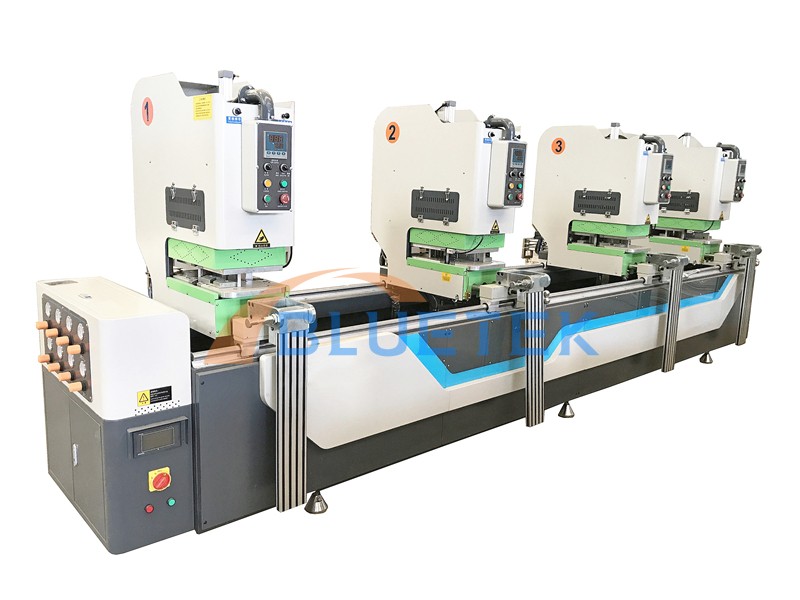

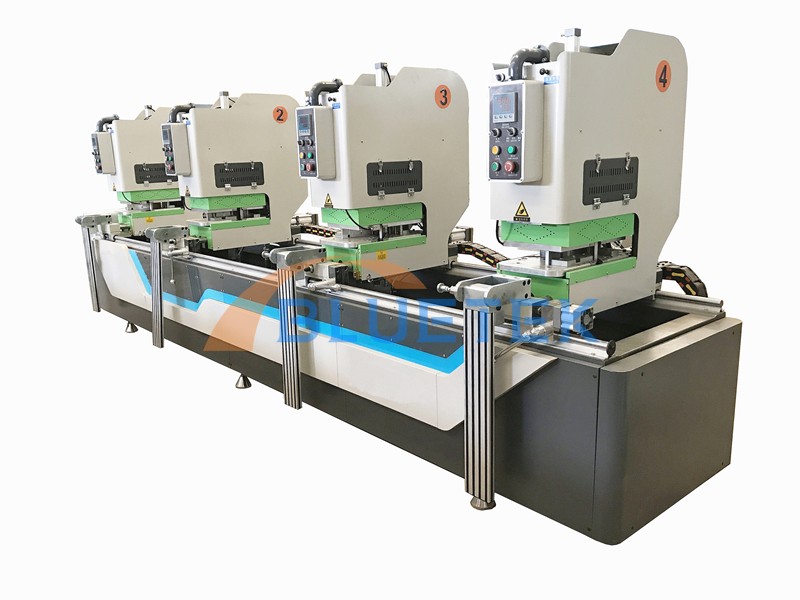

Four Heads PVC Window Seamless Welding Machine For Sale

1. WFH-4A PVC window seamless welding machine is suitable for the welding of colored co-extrusion PVC profiles and colored film coated PVC profiles. It is a popular PVC window welding machine for sale in recent years. While welding, the cutting knife can cut off welding slag on the upper and lower surfaces of window corners. There is no welding seam, which makes the doors and windows more beautiful.

2. There are four heads, which can weld various forms for ┏ , ┏┓ ┏┓, ┏┳┓, ┏┳┳┓, ┏┳, ┏┳┳┳. The four heads can work together or individually, which is very flexible and convenient. Meet the needs of various welding forms.
3. The latest knife structure, adjust twice during the cutting process to eliminate accumulated errors, and cut the upper and lower sides of the color-coated profile at one time to achieve long-term stable flatness and angular strength.
4. The lower table is an integrated plate structure, and the upper and lower clamps move with high precision on the precision square rail.
5. Increase the auxiliary pressing function to prevent the problem of material running during the welding process, and the oblique melting is more accurate; reduce the main pressure pressure, reduce the deformation of the profile, and improve the flatness of the window angle.
6. Welding head No.4 of PVC window seamless welding machine, can install auxiliary tool to welding 30°~180° angles, which is good function to make PVC arc windows.

Technical Parameters

Model	WFH-4A
Product Name	Four Heads PVC Window Seamless Welding Machine
Power Voltage	220V 50Hz
Input Power	4.5 KW
Air Pressure	0.5 ~0.8 MPa
Welding Profile Height	20~120 mm
Welding Profile Width	120 mm
Welding Profile Length	400~4500 mm
Weight	2000 KGS
Overall Dimension	5500x1250x2050 mm
