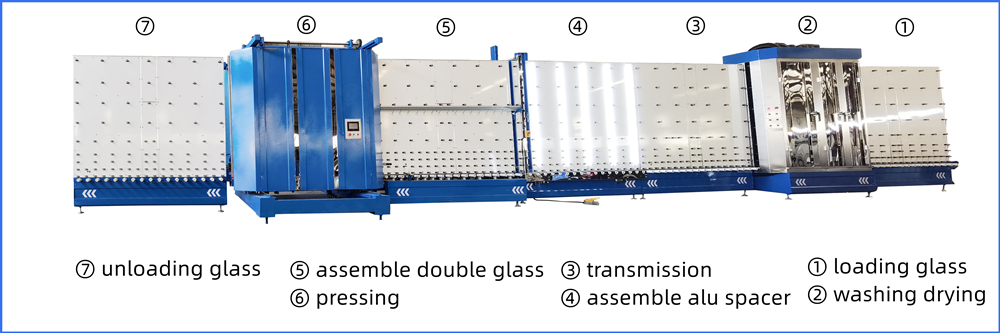

• LZK200A Double glazing making machine can produce double-layer or triple-layer insulating glass with a maximum size of 2000mm * 2500mm. The whole machine consists of 7 sections: Transmission section, Washing section, Transmission section, Inspection section, Glass covering section, Flat pressing section, and Transmission section.

• The whole machine adopts SIEMENS servo control system, the speed can be adjusted arbitrarily, and the glass waiting function will not glass hitting, which is more intelligent and humanized.

• Control screen intuitively displays the operating status of each part, and the specific location will be displayed when a fault occurs, which is convenient for quick maintenance. Support multilingual interface.

• Glass washing machine can detect the glass coating to prevent the glass from being scratched. High quality stainless steel material, longer service life. The cleaning effect of the three pairs of brushes is good, and the water circulation function realizes water saving. The high-power fan has a fast drying speed.

• The opening and closing of the double glazing glass flat pressing section adopts servo motor and precision square guide rail, which has better synchronization, higher stability and good flat pressing effect.

• The automatic double glazing making machine can form a production line with CNC automatic sealing robot, which has a higher degree of automation and improves efficiency.

• According to the customer's site space, the size of the double-layer glass production machine can be customized, and professional insulating glass processing solutions can be provided free of charge.

• With the same quality and configuration, BLUETEK provides customers with the most cost-effective double glazing making machine price.

Technical Parameters

Product Model	LZK2000A
Product Name	Automatic Double Glazing Making Machine
Total Power	22 KW
Max. Size of Double Glazing	2000*2500 mm ( Height * Length )
Min. Size of Double Glazing	400*300 mm ( Height * Length )
Thickness Of Original Glass	3-15 mm
Thickness Of Double Glazing	12- 50 mm
Washing Speed	2 - 12M /min
Working Speed	2 - 45M /min
Overall Dimension	20000*1700*3100 mm

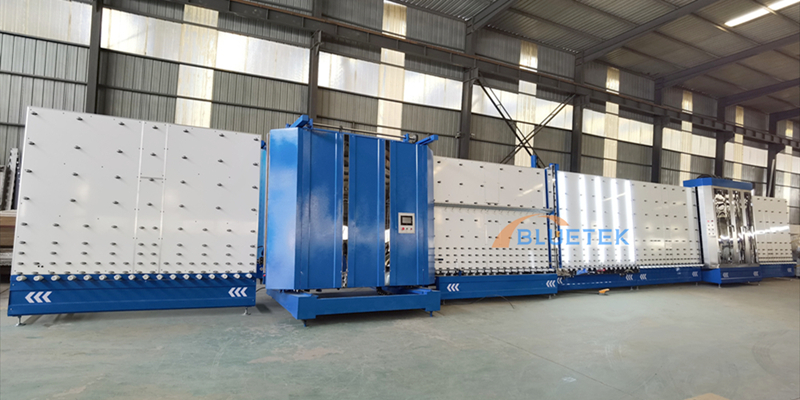

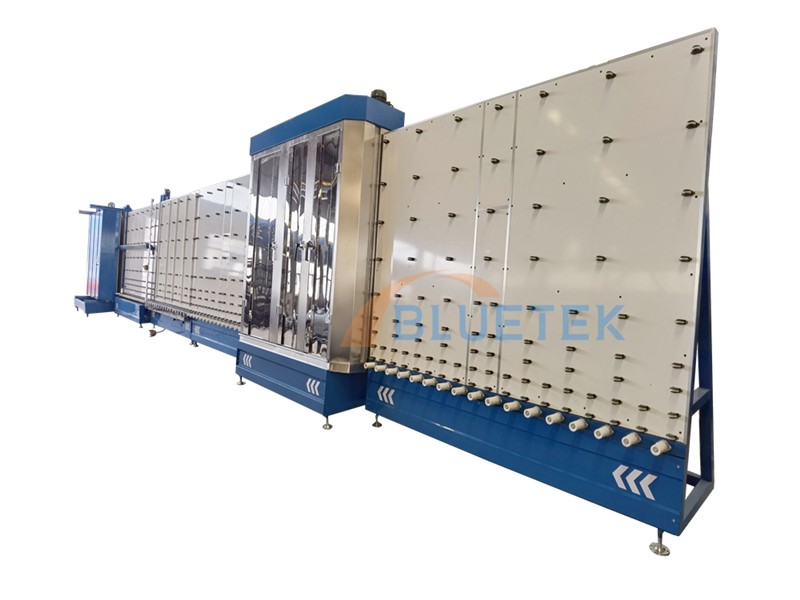

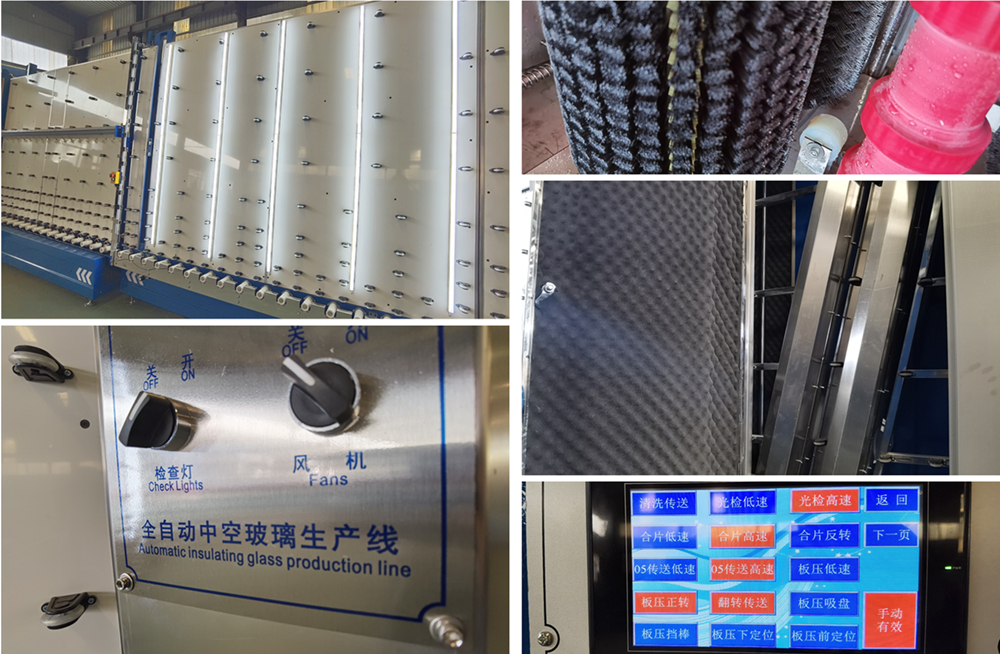

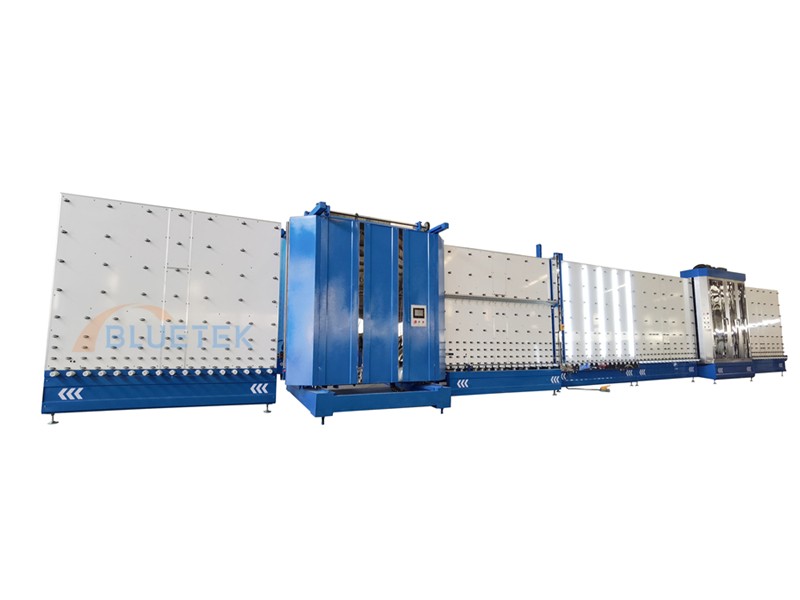

Detail Pictures

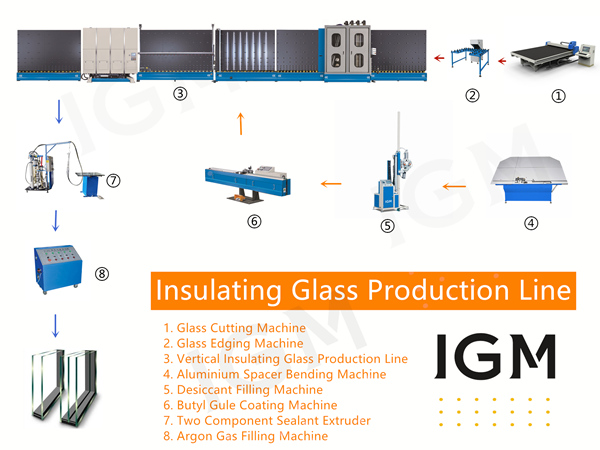

Aluminum Spacer Insulating Glass Production Line From BLUETEK CHINA
