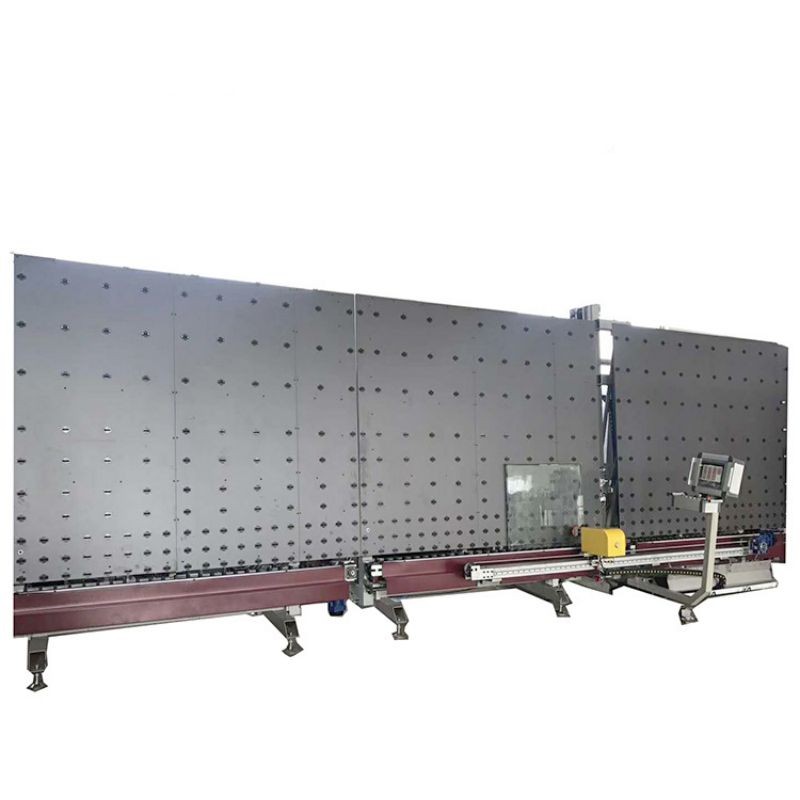

• CNC automatic double glazing sealing machine is used for the sealing of one-component and two-component silicone glue. It is a special machine for the second sealing of insulating glass. It can realize the continuous gluing operation of double-layer and triple-layer insulating glass, and can connect with the insulating glass automatic production line, with high work efficiency.

• Two completely independent glue supply systems, two kinds of sealants can be switched freely.

• It's servo control system adopts world famous brands such as Germany's SIEMENS and Japan's YASKAWA, with friendly Human-machine interface, convenient operation and stable operation.

• The edge of the insulating glass is fully glued without bubbles, and the corners are fully glued, without manual trimming.

• When the gluing operation is in progress, the next unit of insulating glass can wait in the third stage, and the machine can coat glue continuously to improve the production efficiency.

• BLUETEK is professional research and development enterprise of double glazing glass machine and window making machine. We provide customers with the most professional and suitable window door and curtain wall processing solutions.

Technical Parameters

Product Name	CNC Automatic Double Glazing Sealing Machine
Product Model	FJX2500	FJX2000
Input Power	12 KW	11 KW
Power Voltage	380V 50Hz 3 Phase / Customize	380V 50Hz 3 Phase / Customize
Min.Size of Double Glazing	280*450mm	280*450mm
Max.Size of Double Glazing	2500*3500mm	2000*2500mm
Double Glass Thickness	12~60mm	12~60mm
Coating Width	6~ 24mm	6~ 24mm
Coating Depth	2~15mm	2~15mm
Coating Glue Speed	5~45M /min	5~45M /min
Air Pressure	0.5~0.8 Mpa	0.5~0.8 Mpa
Overall Dimension	11500*2850*3200mm	8200*2850*2900mm
Weight	5000 KGS	4000 KGS
