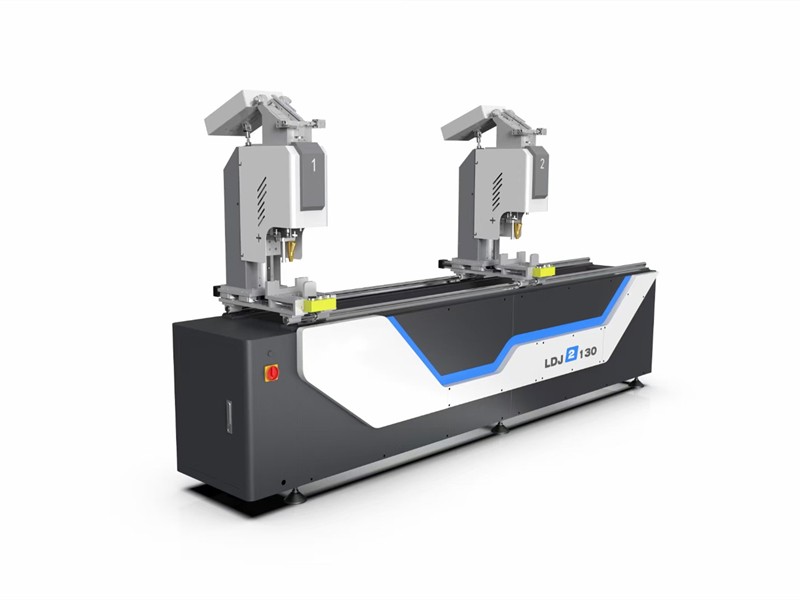

1. Double heads PVC window reinforcement steel drilling machine is used to fix the reinforcement steel of plastic doors and windows, with two machine heads, which is more efficient.
2. Adopt PLC control to ensure the stability and reliability of operation.
3. Automatic nail feeding, spitting, sorting, detection function, high production efficiency.
4. Drilling and nailing can be completed at one time, and the operation is simple.
5. PVC window screw fastening machine saves labor and is suitable for mass production of doors and windows.

Technical Parameters

Product Model	LDJ2-130
Product Name	PVC Window Screw Drilling Fastening Machine For Reinforcement Steel
Power Supply	Customize
Input Power	0.8 KW *2
Motor Speed	1000 r/min
Air Pressure	0.6 ~0.8 MPa
Screw Size	4.2mm *13mm ~ 16mm
Processing Height	130 mm
Thickness of Steel Reinforcement	1.0~2.0 mm
Overall Dimension	1200*600*1700 mm
Weight	400 KG

Detail Pictures
