1. The automatic aluminium section cutting machine is mainly used for automatic cutting of aluminum door and window corners connector, and can complete continuous sawing of 6 meters of aluminum at one time. The length of the automatic feeding is adjustable from 3 mm to 760 mm. Using Taiwan Delta CNC system, the degree of automation is very high.
2. The saw blade is hard alloy saw blade imported from Japan WAGEN, which has a good cutting effect; the feeding mechanism adopts a linear guide motion pair and a gas-liquid damping device, which is very stable and reliable.
3. Aluminium automatic cutter machine using PLC and touch screen control, you can input a variety of cutting length, saw blade thickness, cutting quantity; automatic counting function, power off can automatically save the cut quantity.
4. The aluminum automatic cutting machine is not only used for aluminum alloy corner connectors, but also for automatic cutting of industrial aluminum materials such as cylinder aluminum casing, motor aluminum casing, solid aluminum rod, and other industrial aluminum materials. Special angles can be customized, such as 45 degrees.
5. For the cutting of irregular aluminum profiles, we will customize special fixtures, which can fix the aluminum materials to the greatest extent and ensure the accuracy of feeding and cutting.
6. The phase sequence protection device can effectively protect the equipment when the phase is broken or connected in the wrong phase sequence; it can be equipped with an aluminum dust vacuum cleaner.

Technical Parameters

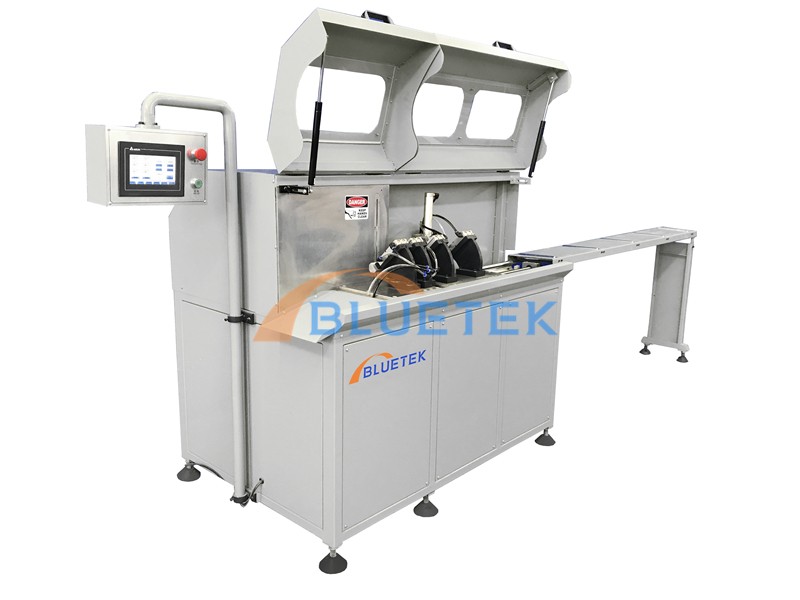

Product Name	CNC Aluminium Profile Automatic Cutter Machine
Product Model	LJJ02A-CNC-500
Air Pressure	0.6 ~0.8 MPa
Input Power	3 KW
Saw Blade Diameter	500 mm
Cutting Width	135 mm
Cutting Height	1350 ~ 150 mm
Cutting Length	3 ~ 760 mm
Cutting Angles	90°
Repeated Positioning Accuracy	0.02 mm
Feeding Speed	0 ~3M /min
Overall Dimension ( With Profile Racks )	5500*1700*1800 mm
Weight	750 KG

Detail Pictures of Aluminium Section Cutting Machine

Automatic feeding device adopts ball screws and linear guides, the repeat

positioning accuracy is high, and the error is within 0.02 mm.

90 Degrees angles cutting, Saw blade is from Japan WAGEN, cutting section is smooth without burrs.

The control system of aluminium automatic cutter machine is from Taiwan DELTA,

good quality and easy operation.
